Crane Lift Box
Lift and lower supplies
Engineered to carry up to 4,000 lbs
Crane Lift Box in action
Crane Lift Box
Crane Lift Box
- Crane Lifting Eyes provide a safe 4-point pick up (Rigging NIC)
- Comes standard with fork pockets to allow for easy handling with a forklift
- Engineered to carry up to 4,000 lbs.
Easily lift supplies above or below ground level
Lift or lower supplies, materials and small equipment with a Star Industries Crane Lift Box. The box is engineered from strong 10-gauge steel and four-point lift eyes to carry a massive 4,000 lbs in weight.- Strong 10-gauge steel shell tub is heavily reinforced with 1/4” angle.
- Rugged heavy-duty construction for long-term durability.
- Rigging also available.
Rigging Requirements
Rigging for the Models 1454 and 1455 Crane Lift Boxes are not included. The rigging must have load ratings that equal or exceed the rated load capacity of the Crane Lift Box plus its empty weight. Screw pin anchor shackles are recommended to attach slings to the trash skip.

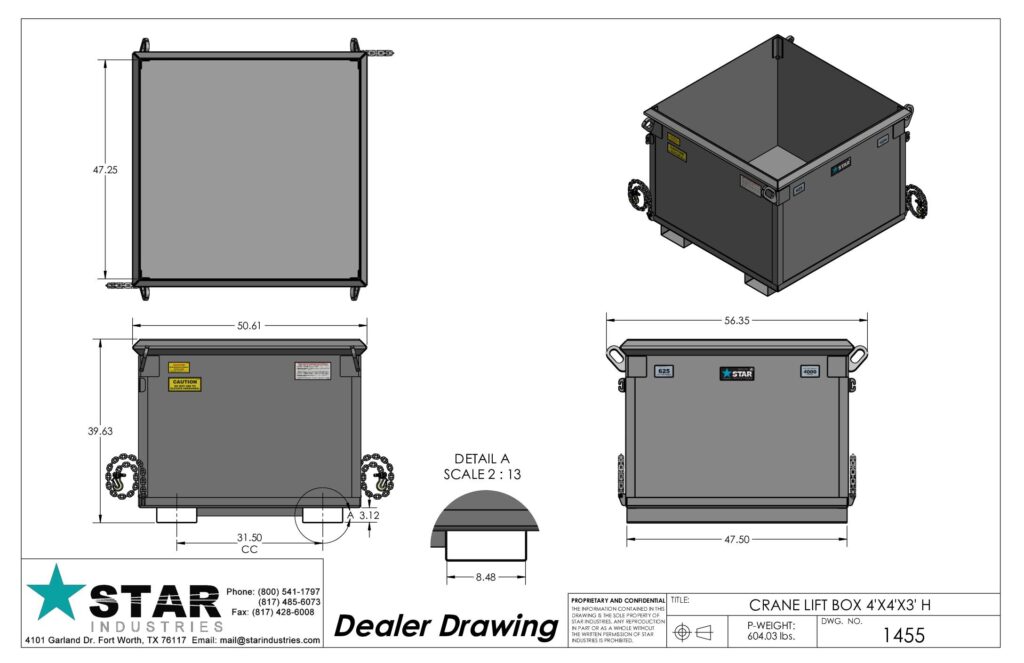

| Model 1454 (2 ft. deep) | Model 1455 (3 ft. deep) | |
|---|---|---|
| Dimensions | 57” long x 51” wide x 27 3/8” high |
57” long x 52” wide x 39 3/16” high |
| Capacity | 1.2 cu yds | 1.75 cu yds |
| Max. Load Capacity | 4,000 lbs | 4,000 lbs |
| Fork Pocket ID | 3 1/8” high x 8 ¼” wide | 3 1/8” high x 8 ¼” wide |
| Spaced on Center | 31.5” | 31.5” |
| Empty Weight | 465 lbs | 625 lbs |
Operating manual/safety information available online and at 1-800-541-1797

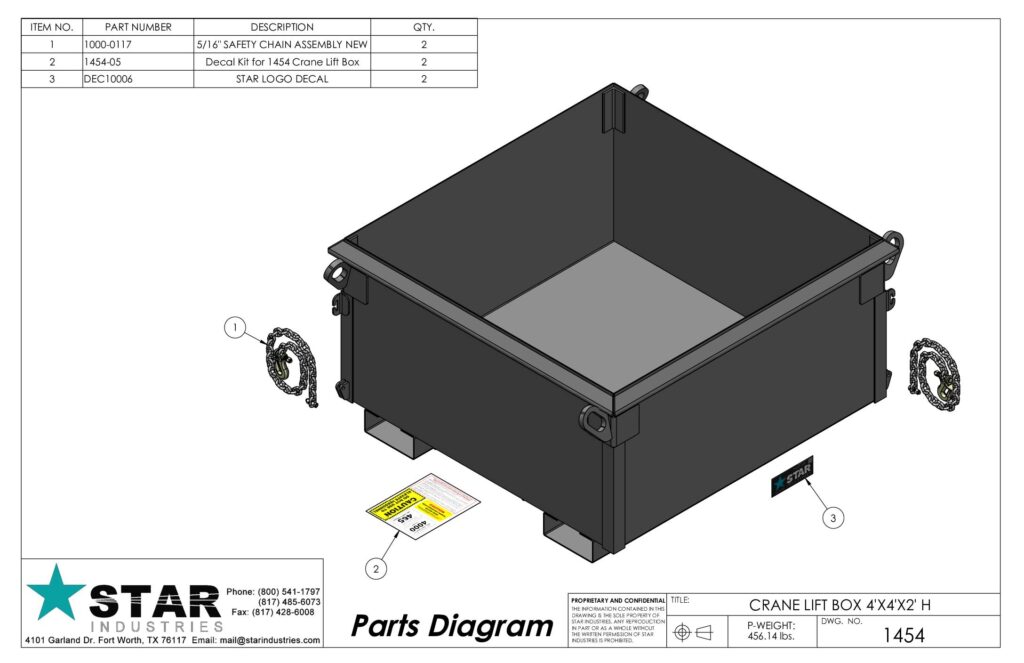

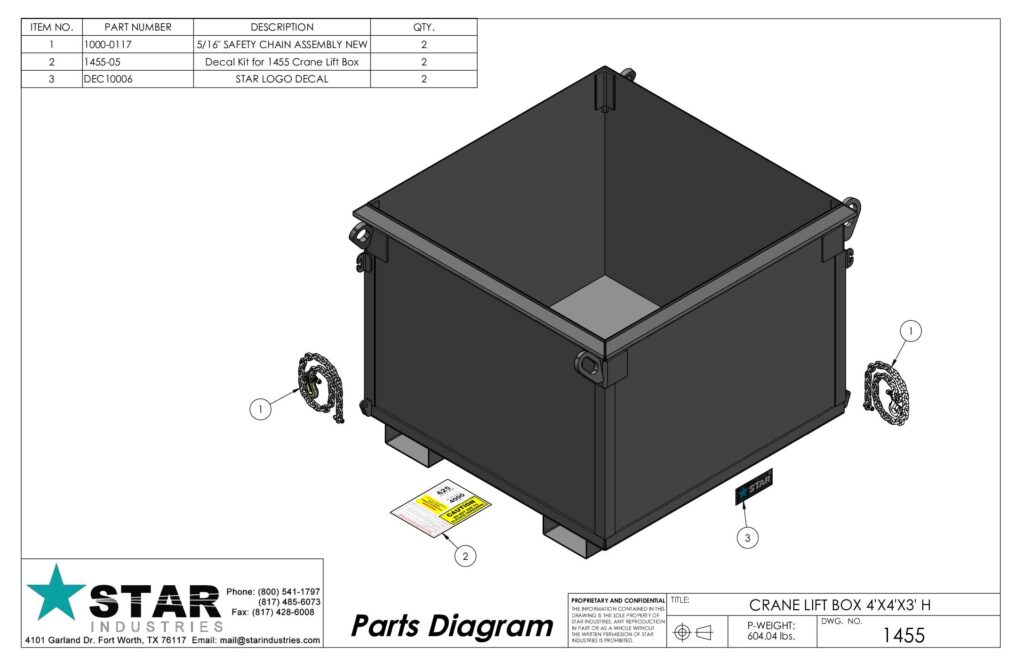

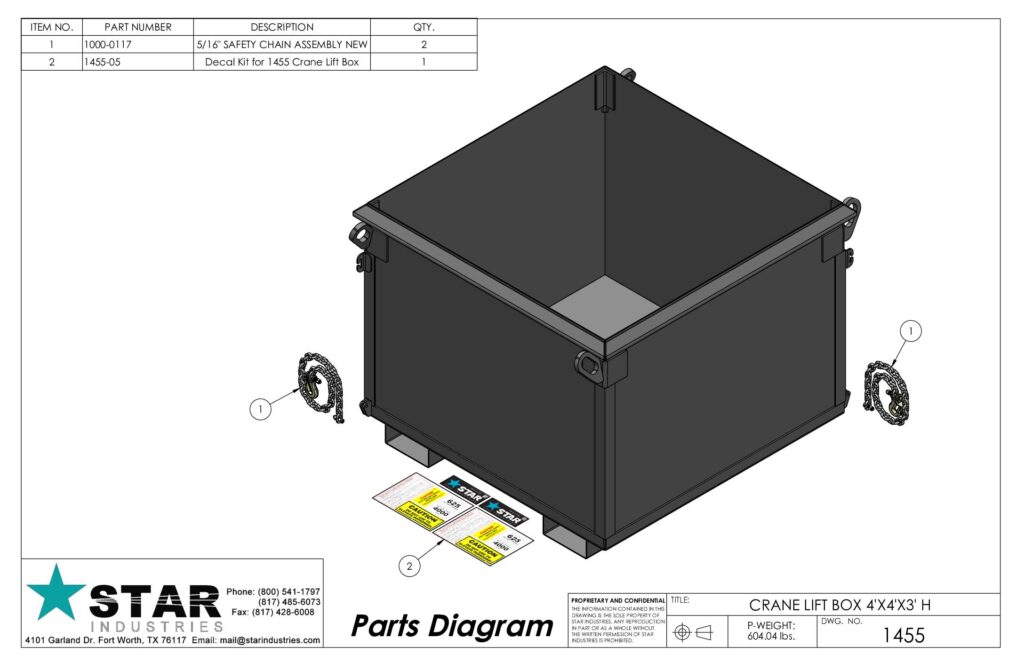

Parts (4)
Select parts using the checkboxes to add them to your inquiry list.
Don't know the part #? Go to the page for your attachment (e.g., Jib Boom) and click on the downloads tab to locate the Parts Diagram PDF.
Quote Request
Back to selected items You have selected 0 items for inquiry.
Selected items
Contact information
Safely Move Supplies and Equipment Overhead with a Crane Lift Box
Crane lift boxes ensure smooth and secure lifting operations at construction sites, industrial plants, offshore rigs, and mining operations.
What Is a Crane Lift Box?
A crane lift box attachment, also known as a crane lift bucket, is a specialized device designed to facilitate the safe and efficient lifting, transporting, and positioning of materials using a crane. These attachments are widely used in construction, industrial maintenance, and material handling operations. They enhance safety by providing a secure enclosure for lifting materials and minimizing the risks associated with suspended loads.
Key Features of Crane Lift Box Attachments
Crane lift box attachments have several features that make them an attractive option for heavy lifting operations. Some of the key features include:
Four-point pick-up: Four lifting eyes (one in each corner) provide a strong and stable four-point pick-up for the rigging, which offers lift stability and security.
Durable Construction: The box, made of strong 10-gauge steel and a robust design, is built to withstand the rigors of heavy lifting.
Easy Load and Unload: The attachment is designed for easy loading and unloading cargo, reducing the risk of accidents and injuries.
Fork pockets: The crane lift has bottom-side fork pockets, which allow easy handling with a forklift. It is perfect for transporting the attachment from the material delivery area to the crane lift area.
Generous Volume Capacity: Crane lift boxes are available in different sizes and capacities, with the bigger ones holding a generous 1.75 cubic yards of materials.
Max Load Capacity: Most lift boxes can lift up to 4,000 lbs of materials.
Versatility: Crane lift box attachments can lift a wide range of materials, waste products, and small equipment.
Common Applications of Crane Lift Box Attachments
These attachments have a wide range of applications in various industries. Some of the most common uses include:
Construction and Building Maintenance
In the construction industry, lift boxes are frequently used to transport tools and building materials to elevated locations.
Material Handling and Transport
Crane lift boxes are ideal for safely lifting and moving heavy materials, debris, or tools at job sites. They reduce manual labor and improve efficiency. These boxes are especially useful in confined spaces where forklifts or other lifting equipment cannot reach.
Shipbuilding and Offshore Operations
In shipyards and offshore platforms, crane lift boxes are often used to transport tools, and supplies to different sections of a ship or rig. These environments require rugged, weather-resistant lift boxes to withstand harsh marine conditions.
Want to learn more about any of our crane attachments? Contact the Star team today.
Crane Hopper/Lift Box FAQs
What is a crane lift box used for?
A crane lift box is used to transport smaller tools and equipment vertically around a construction site. Typical loads can include drills, saws, jackhammers and other tools that crews need on elevated work areas.
Is a crane lift box the same as a crane hopper?
These terms may be used differently by contractors and manufacturers. Customers may search for this style of attachment as a crane lift box, crane box, crane hopper or crane tool carrier.
The important consideration is the size, weight and type of material you need to transport.
What kinds of tools can contractors move in a crane lift box?
Crane lift boxes are well suited for smaller jobsite tools and equipment such as drills, saws, jackhammers and similar items that need to be moved between ground level and elevated work areas.
For larger or bulkier building materials, a crane material basket may be a better option.
