Fork extensions
Easy one person installation
Lock into place
Fork Extension close up chain
Placing the fork extension
Fork extension
Fork extensions
Fork Extensions
- Perfect for bulky loads
- Extend your fork length to 72”
- One operator can add and remove extendable fork in seconds
Extend and get more fork under your load
Get more fork under bulky and awkward loads with a Star Industries fork extension. It’s quick and easy to install with installation and removal taking just seconds.Things you need to know about fork extensions
- Overall length of fork extension must not exceed 150% of fork length.
- Inside width of fork extension must not be more than ½" wider than fork.
- Forklift capacity is substantially reduced when center of load is moved out beyond standard 2 ft. load center.
- Do not pick up load with tip of fork extensions.
- Load must be centered on fork extensions or closer to the backstop.
| Model | Overall length | Fits Forks | Weight per set |
|---|---|---|---|

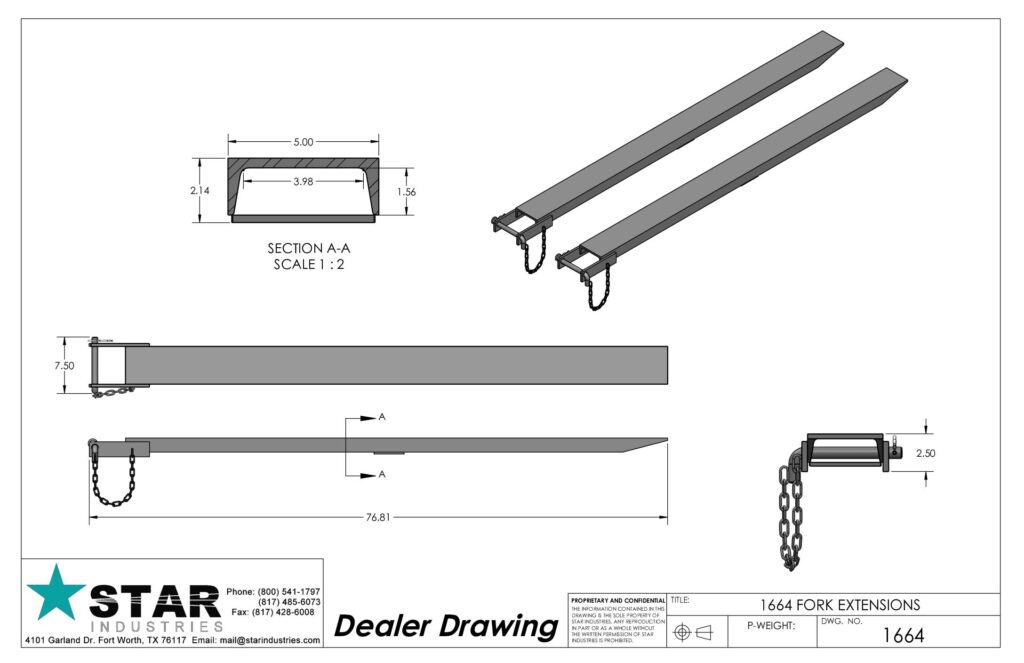

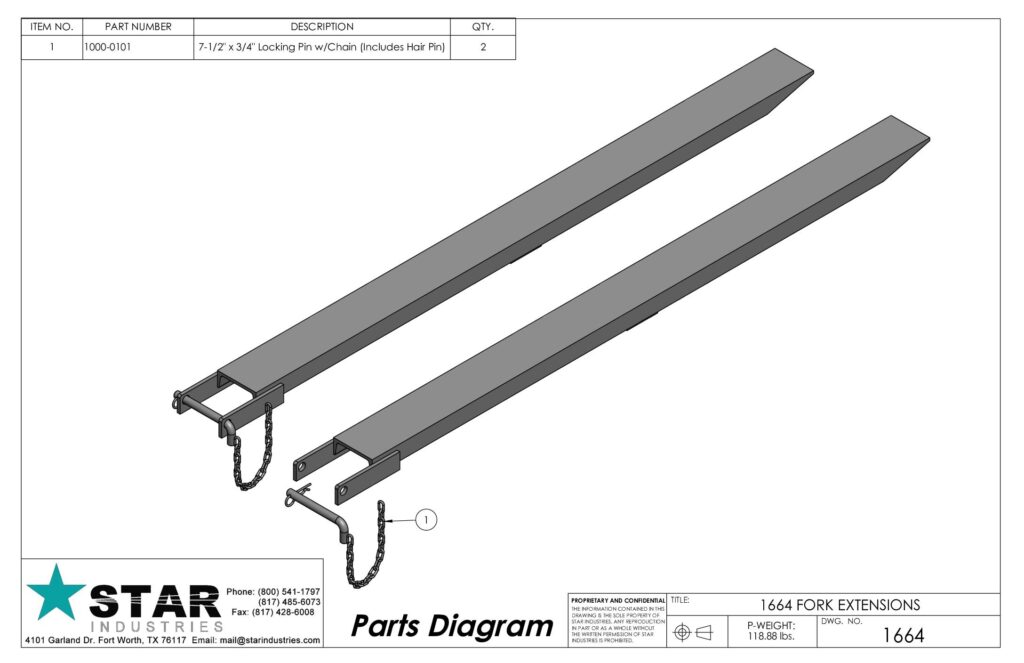

| 1664 | 72″ | 4″ x 48″ | 120 lbs |

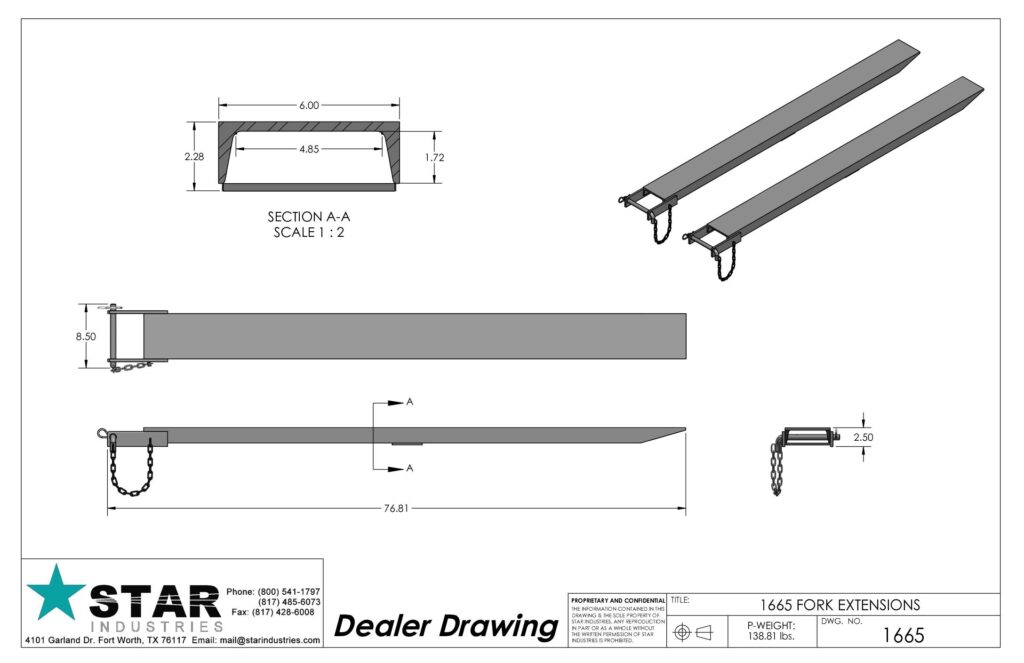

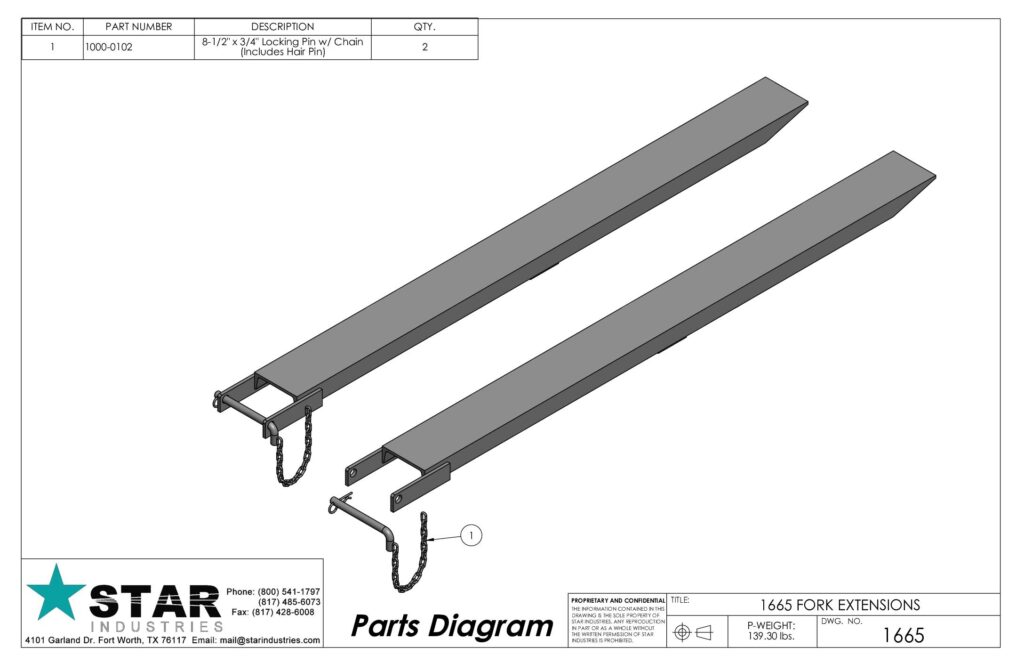

| 1665 | 72″ | 5″ x 48″ | 140 lbs |

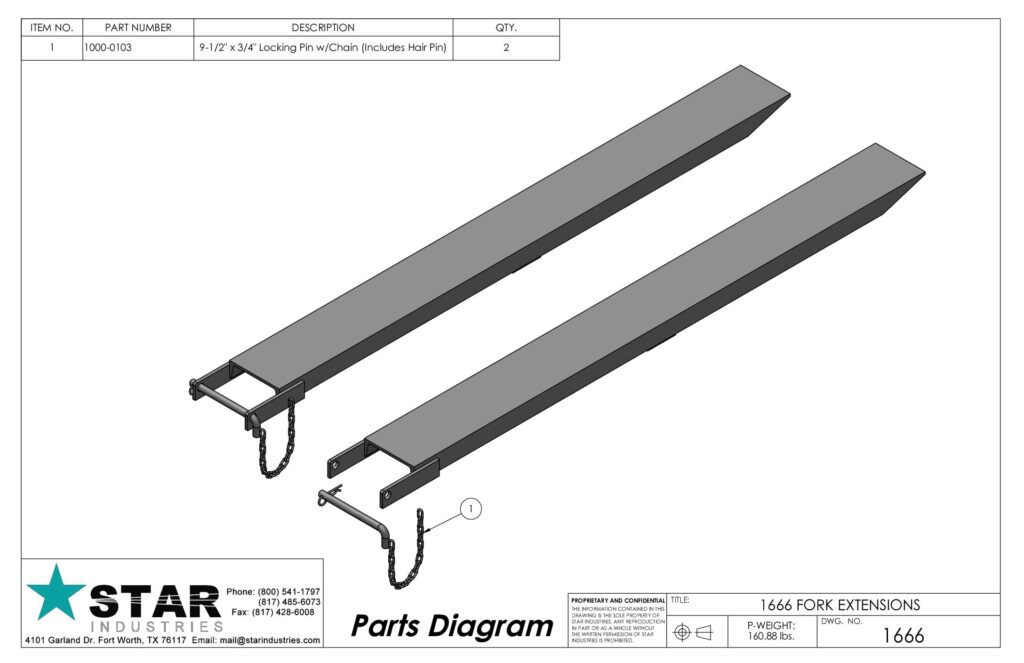

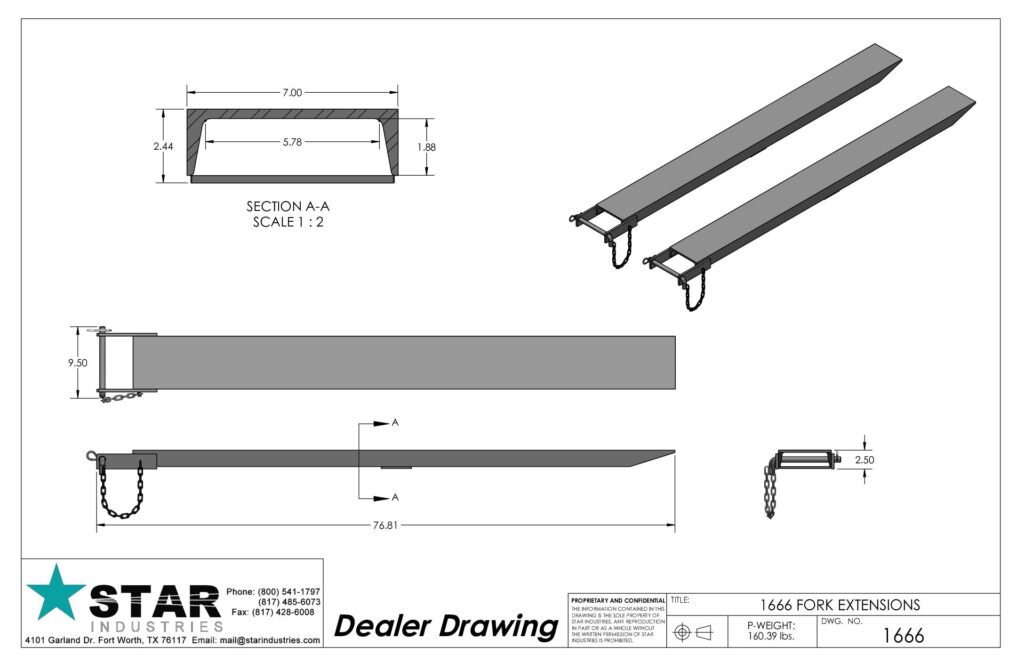

| 1666 | 72″ | 6″ x 48″ | 160 lbs |
Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook. Operating manual/safety information available online and by calling 1-800-541-1797.
-
Fork extender connection
