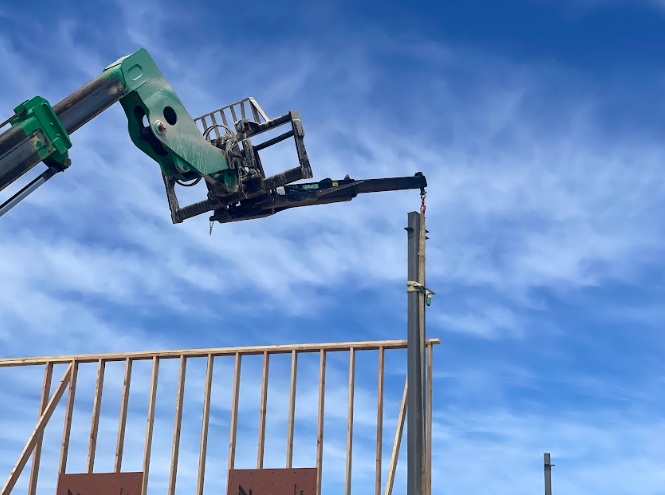

Jib Boom in action on work site
Universal fit (slips-on-the-forks) design
Pinned behind the heel to secure
Place heavy loads over or under obstacles

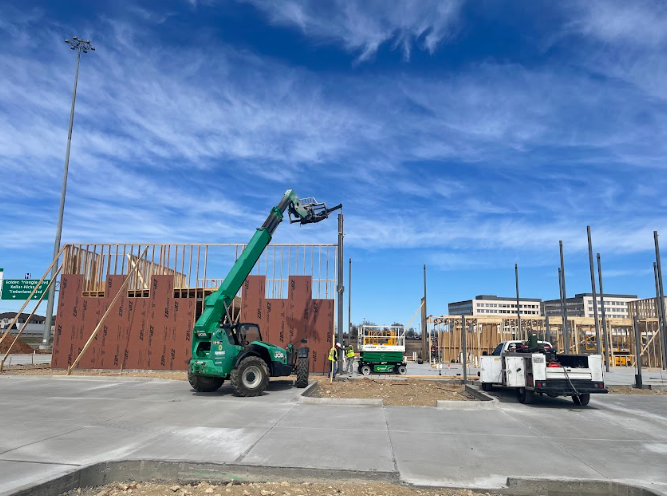

Jib Boom in action
Star Industries Jib Boom
Forklift Jib Boom
- Star Industries Forklift Jib Boom
- Suitable for straight-mast and extendable-reach type forklifts
- Telescopic two section tubular steel boom
- Manually telescopes from 7′ to 12′
Extend the reach of your forklift
Extend the reach of your forklift with a Star Industries heavy duty forklift jib. The telescopic boom extends up to a massive 12 feet making it the perfect solution to place heavy loads over or under obstacles.Features
- Pull spring-loaded pin to telescope—release pin and boom locks in desired position
- Internal stop ensures telescopic section cannot be accidentally pulled all the way out
- Jib slides on the forks and is pinned behind the heel to secure it to the forklift
- Universal fit (slip-on-the forks) design permits use on most all forklifts
- One bolted shackle and swivel hook is included
| Model | 1360B |
|---|---|
| Max Load Capacity | 6000 lbs @ 4′ |
| Empty Weight | 585 lbs |
| Extends | 7’ 0” to 12’ 0” |
| Vertical Center of Gravity | Centerline |
| Horizontal Center of Gravity Fully retracted | 36 5/16″ |
| Horizontal Center of Gravity Extended midway | 43 ¾” |
| Horizontal Center of Gravity Fully extended | 54 7/16″ |
Hook Positions:
| Hook Position | 4 | 3 | 2 | 1 |
|---|---|---|---|---|
| Distance | 12′ 0″ | 9′ 0″ | 7′ 0″ | 4′ 0″ |
| Maximum load on a single hook | 2,000 lbs | 3,000 lbs | 4,000 lbs | 6,000 lbs |
Fork Pocket Size:
30″ long x 7½” x 3½” ID
Center to Center of Fork Pockets:
24″ / Pocket Ends are open.
Fixed Length JIB Options:
| Model | Capacity | Reach |
|---|---|---|
| 1360B | Varies (see chart on technical drawings tab) | Varies (see chart on technical drawings tab) |

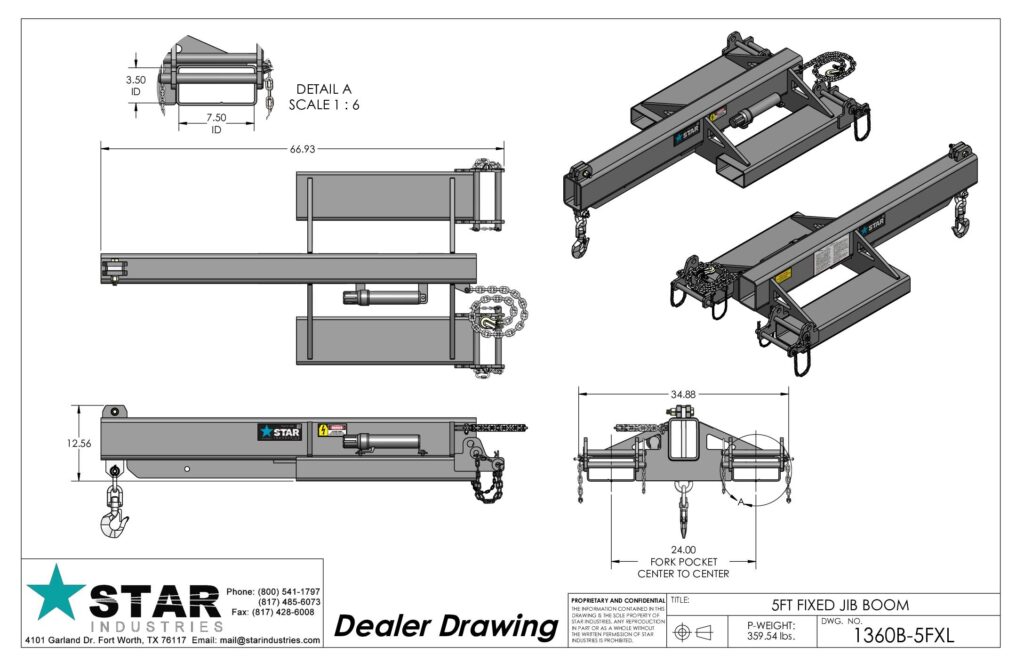

| 1360B-5FXL | 6,000 lbs | 5′ (ft) |

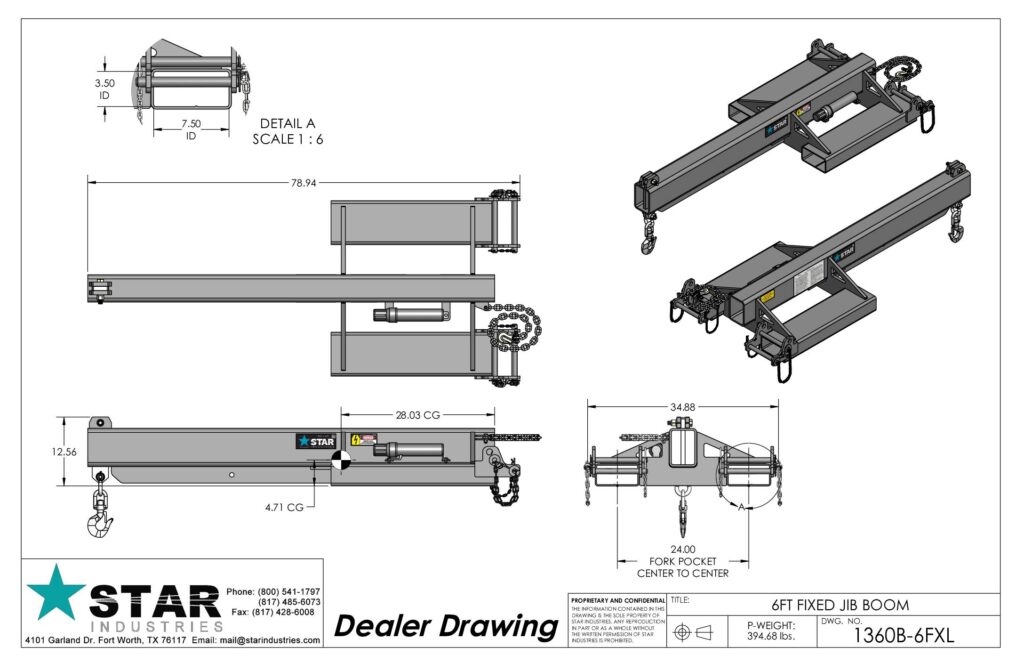

| 1360B-6FXL | 5,000 lbs | 6′ (ft) |
| 1360B-7FXL | 4,000 lbs | 7′ (ft) |
Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook. Operating manual/safety information available online and by calling 1-800-541-1797.
The Forklift Jib Boom: Lift Heavy Loads over Obstacles
Jib boom attachments are indispensable for craning things around the yard or construction site, in industries ranging from construction and manufacturing to warehousing and mining. The heavy-duty jib slides onto the forks and is pinned behind the heel to secure the jib boom attachment to the forklift. Once securely pinned, the forklift transforms into a mobile crane ready for use.
Key Features of a Forklift Jib Boom
The key feature of a forklift jib boom is its adjustable length and reach. Telescopic arms can extend or retract to accommodate different lifting needs, allowing flexibility to handle various load sizes and shapes easily. Other features of a jib boom attachment for a forklift include:
Swivel Hooks and Load Capacity
Jib boom forklift attachments have swivel hooks for secure lifting, allowing better load positioning. Depending on the model, they can handle weights up to several tons.
Universal Fit and Easy to Attach
Many jib booms will have a universal fit (slip-on-the-forks) design that enables use on most forklifts. The jib slides on the forks and is pinned behind the heel to secure it to the forklift, making it easy to attach and remove the attachment when not in use.
Internal Jib Stop
Most jib boom attachments for forklifts include an internal stop safety feature that ensures the telescopic boom can’t be accidentally extended all the way out.
Benefits of Using a Jib Boom for Forklift Jobs
The primary benefit of using a forklift jib boom is its increased versatility. By converting a forklift into a mobile crane, operators can perform a broader range of tasks, such as lifting and transporting heavy or awkwardly shaped loads. This versatility reduces the need for multiple pieces of equipment, leading to cost savings and improved operational efficiency.
Other benefits include:
Enhanced Safety
Jib booms enhance safety by providing a secure and stable means of lifting loads. The swivel hooks and adjustable reach allow precise positioning, reducing the risk of accidents and injuries. Additionally, using this type of attachment minimizes the need for manual lifting, reducing the risk of strain and injury to workers.
Time and Labor Savings
A forklift jib boom can efficiently complete tasks requiring multiple workers and equipment, saving significant time and labor.
More Versatility for Your Forklift
By extending the functionality of existing forklifts, companies can avoid the expense of purchasing additional equipment.
Applications of Forklift Jib Booms across Industries
These attachments are used across various industries, each benefiting from their unique features and advantages.
Construction
In construction, forklift jib booms are useful for lifting and moving heavy items like steel beams, pipes, and concrete blocks. They extend the forklift’s reach, allowing delivery to elevated or hard-to-reach areas, boosting efficiency and reducing manual labor.
Manufacturing
Manufacturing facilities often utilize these attachments to move heavy machinery, parts, and equipment. The precision and control offered by the jib boom make it easier to position loads accurately, ensuring smooth and safe operations.
Warehousing and Logistics
These attachments enable the efficient handling of large and bulky items, such as pallets and containers, in and around the warehouse.
Mining and Heavy Industries
Jib booms are used in mining and heavy industries to lift and transport heavy equipment and materials. These attachments’ robust construction and high load capacity make them ideal for demanding environments. The enhanced safety features ensure that operations are carried out with minimal risk.
For a forklift jib boom attachment that will stand up to tough conditions, contact our team today.
