- Star Industries Mini Root Grapple Buckets
Made for Dingo, Ditchwitch, Vermeer, Boxer, Ramrod and Bobcat Mini Skid-Steers - Protective sleeves on all hydraulic lines
Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Mini Root Grapple or Grapple Bucket.

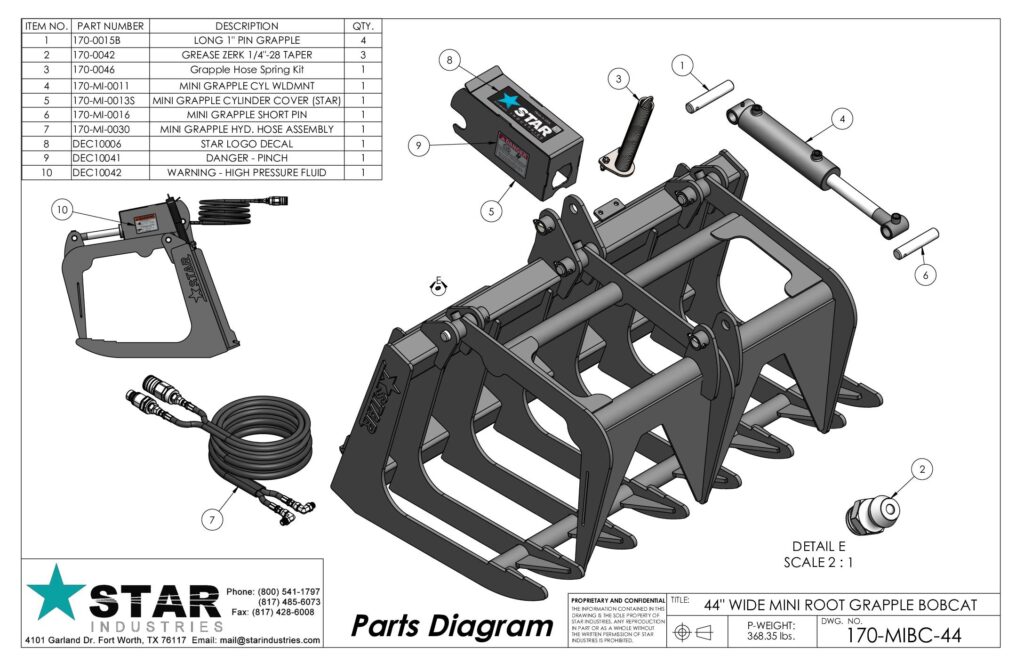

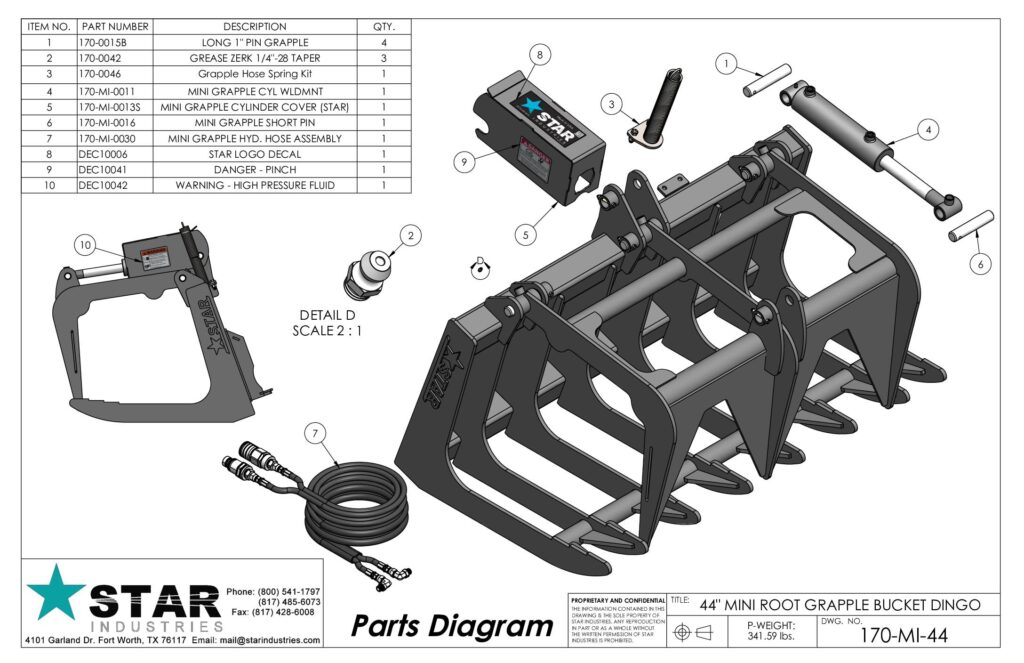

The root grapples let dirt sift out when loading large rocks and trash making it the perfect attachment of debris clean up. The grapple bucket has a solid bottom to keep all material in the bucket. Both open extra wide for a full load.Mini Root Grapple

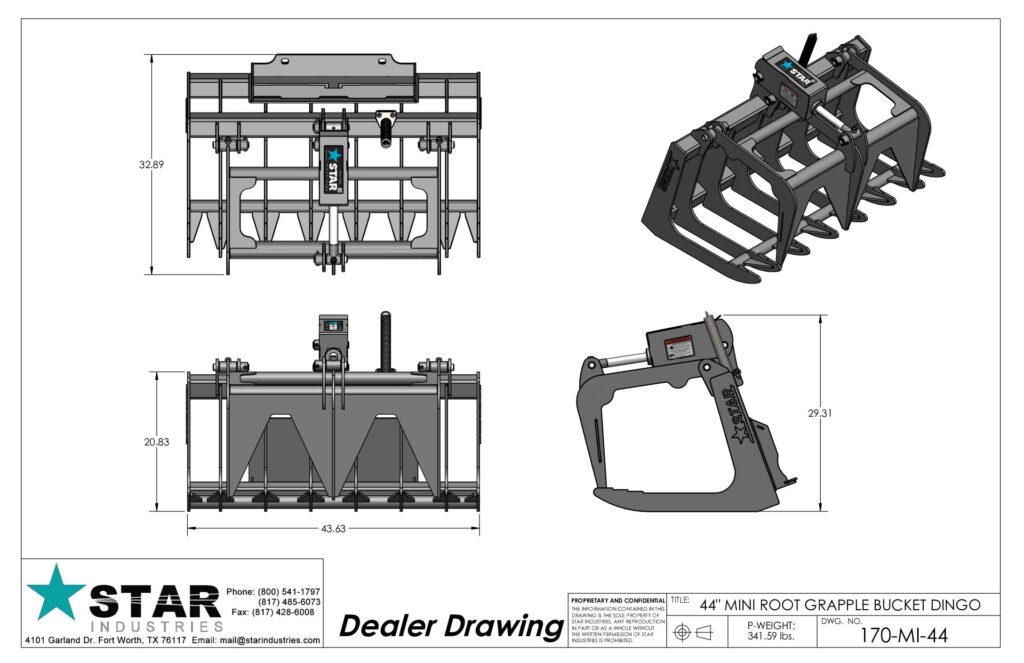

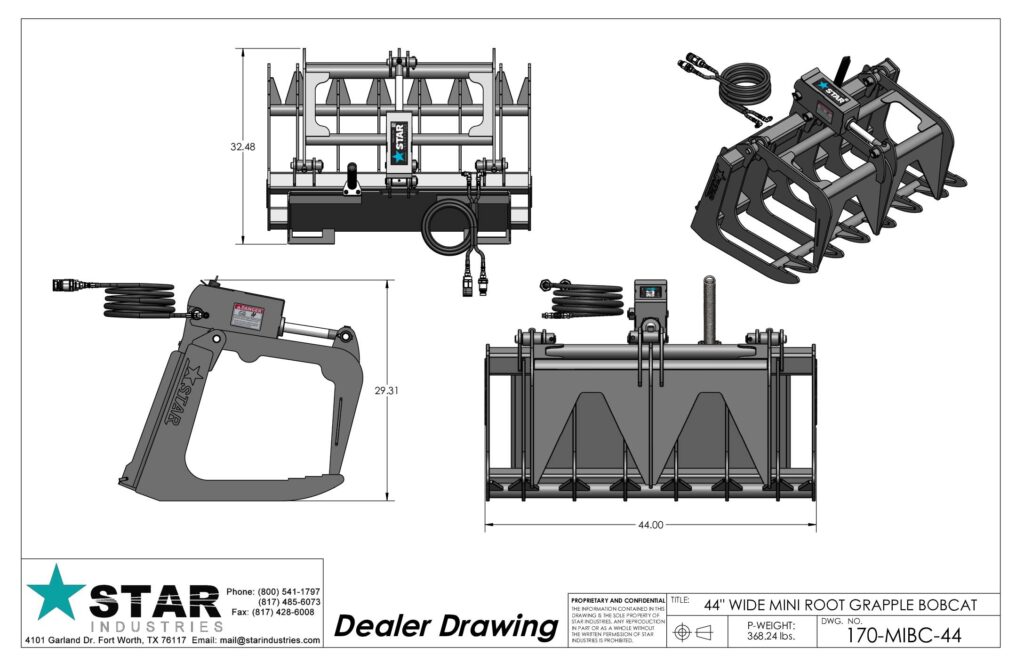

| Model | 170-MI-44 | 170-MIBC-44 |
|---|---|---|
| Fits | Dingo, Ditchwitch, Vermeer, Boxer and Ramrod | Bobcat |
| Empty Weight | 245 lbs | 245 lbs |

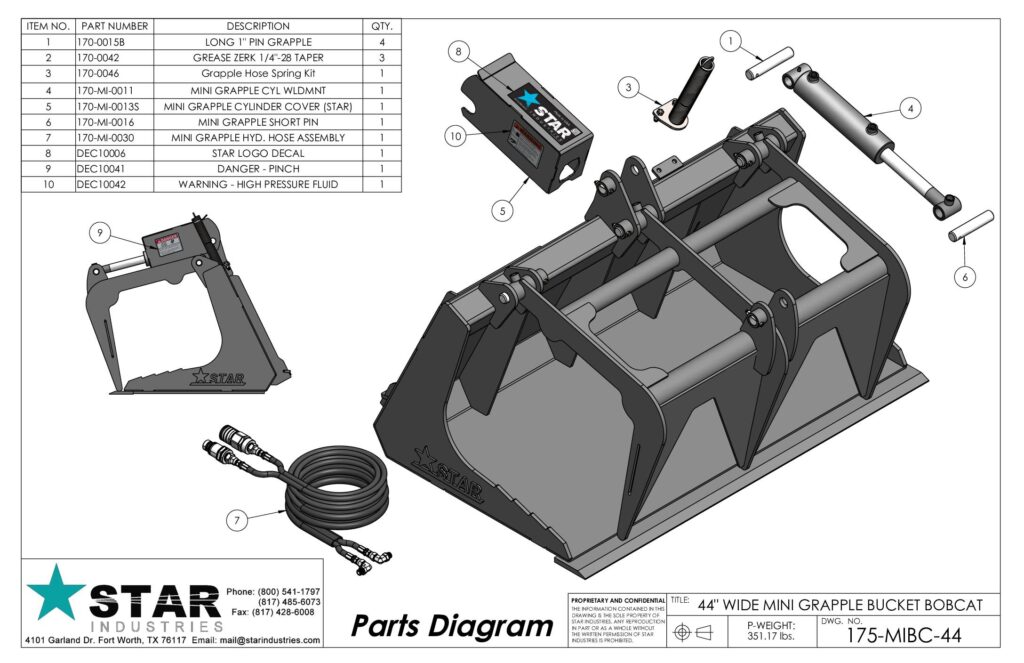

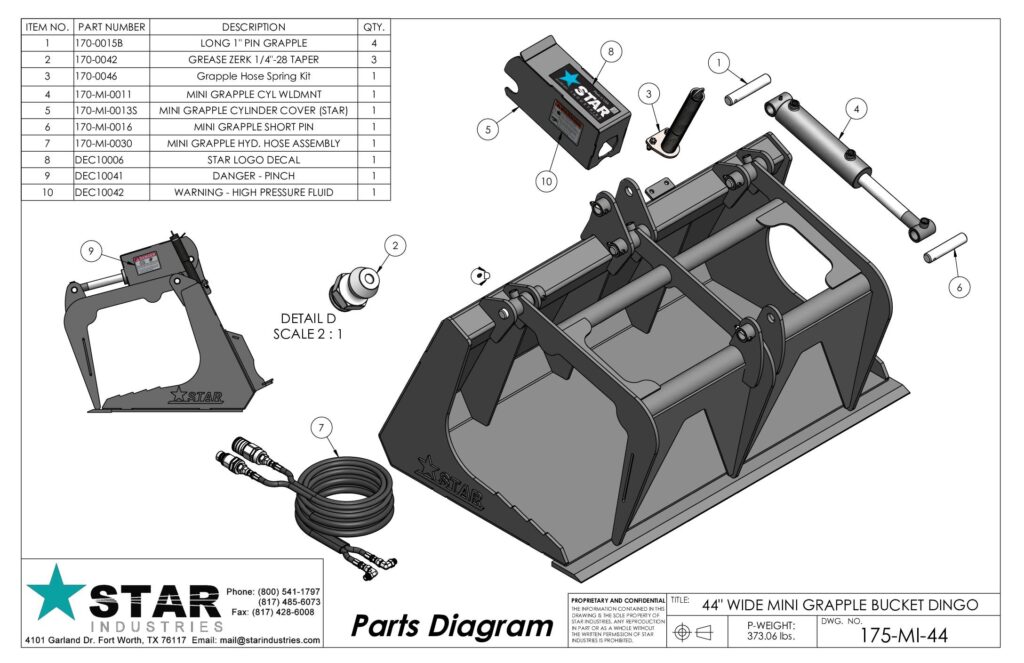

Mini Grapple Bucket

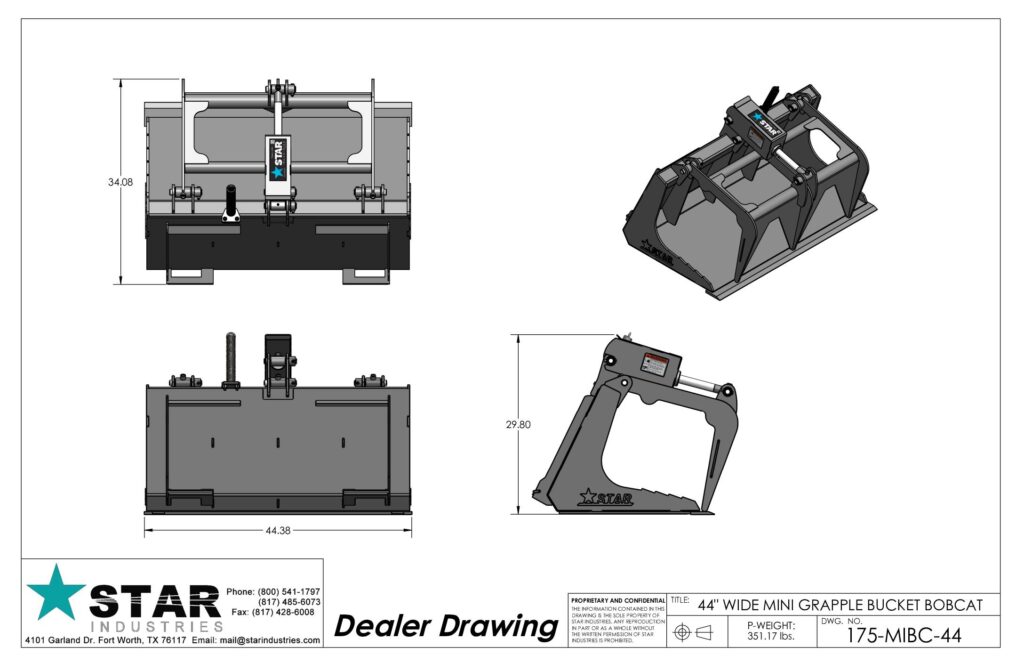

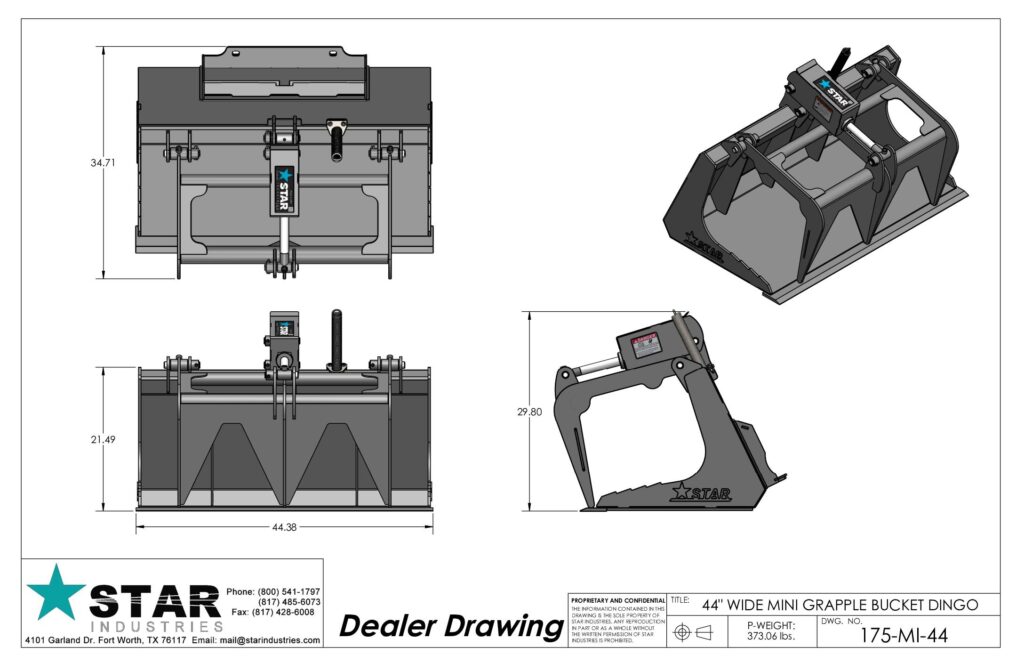

| Model | 175-MI-44 | 175-MIBC-44 |
|---|---|---|
| Fits | Dingo, Ditchwitch, Vermeer, Boxer and Ramrod | Bobcat |
| Empty Weight | 263 lbs | 263 lbs |
Specifications
| Measurements | Grapple Bucket | Root Grapple |
|---|---|---|
| Width | 44” O.D. | 44” O.D. |
| Hyd. Cylinder | 2” Bore by 10” Stroke | 2” Bore by 10” Stroke |
| Grapple Tines | 5/16” thick | 5/16” thick |
| Grapple Max Opening | 30” | 30” |
| Overall Depth | 35 ¾” | 35 ½” |
| Overall Height | 27 ¾” | 26” |
| Bucket Height | 21” | 20” |
| Bucket Depth | 26 3/8” | Does not apply |
| Pivot Pins | 1” DIA: Grease fittings on all pivot points | 1” DIA: Grease fittings on all pivot points |
| Hyd. Hoses | Protective sleeves on all hydraulic lines | Protective sleeves on all hydraulic lines |
| Hyd. Quick-Disconnects | ½” flat body couplers included | ½” flat body couplers included |
Operating manual/safety information available online and at 1-800-541-1797
Parts (7)
Select parts using the checkboxes to add them to your inquiry list.

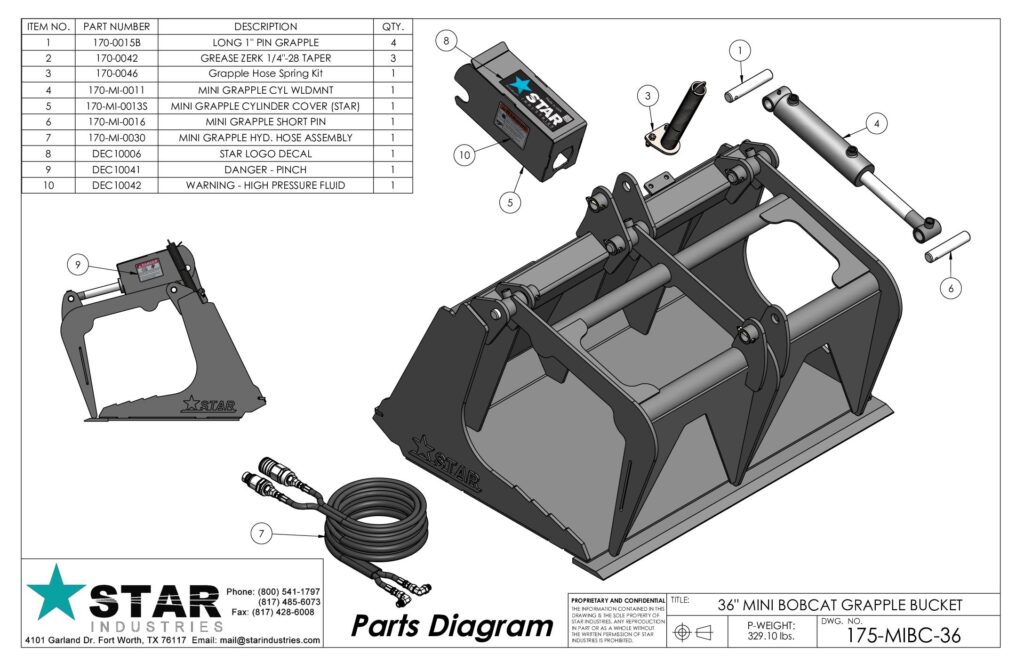

Don't know the part #? Go to the page for your attachment (e.g., Jib Boom) and click on the downloads tab to locate the Parts Diagram PDF.
Part Number
Description
Diagram
170-0015B
Long 1" Dia Pin for Grapples -for Cylinder Base
Fits: ROOT & GRAPPLE BUCKETS, 1445SD, 1472SDH, 1484SDH
170-0046
Grapple Hose Spring Kit
Fits: ALL FULL SIZE & MINI GRAPPLES BUCKETS
170-MI-0011
Mini Grapple Hyd Cylinder w/ Zerk Protector
Fits: MINI ROOT & GRAPPLE BUCKETS
170-MI-0013S
Mini Grapple Cylinder Cover (STAR)
Fits: MINI ROOT & GRAPPLE BUCKETS
170-MI-0016
Mini Grapple Short Pin
Fits: MINI ROOT & GRAPPLE BUCKETS, 1445SDH, 1472SDH, 1484SDH
170-MI-0030
Mini Grapple Hyd. Hose Assembly
Fits: MINI ROOT & GRAPPLE BUCKETS
DEC10006
Star Logo Decal
