Universal Lift Hook includes heavy-duty swivel hook with latch and bolted anchor shackle

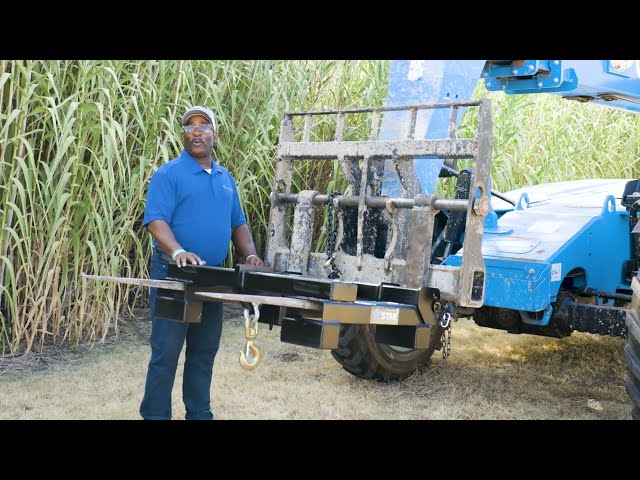

Easily slides on the forks and is pinned behind the heel
Rugged heavy duty construction
Lift suspended loads safely and securely with your forklift
Universal Lift Hook includes heavy-duty swivel hook with latch and bolted anchor shackle

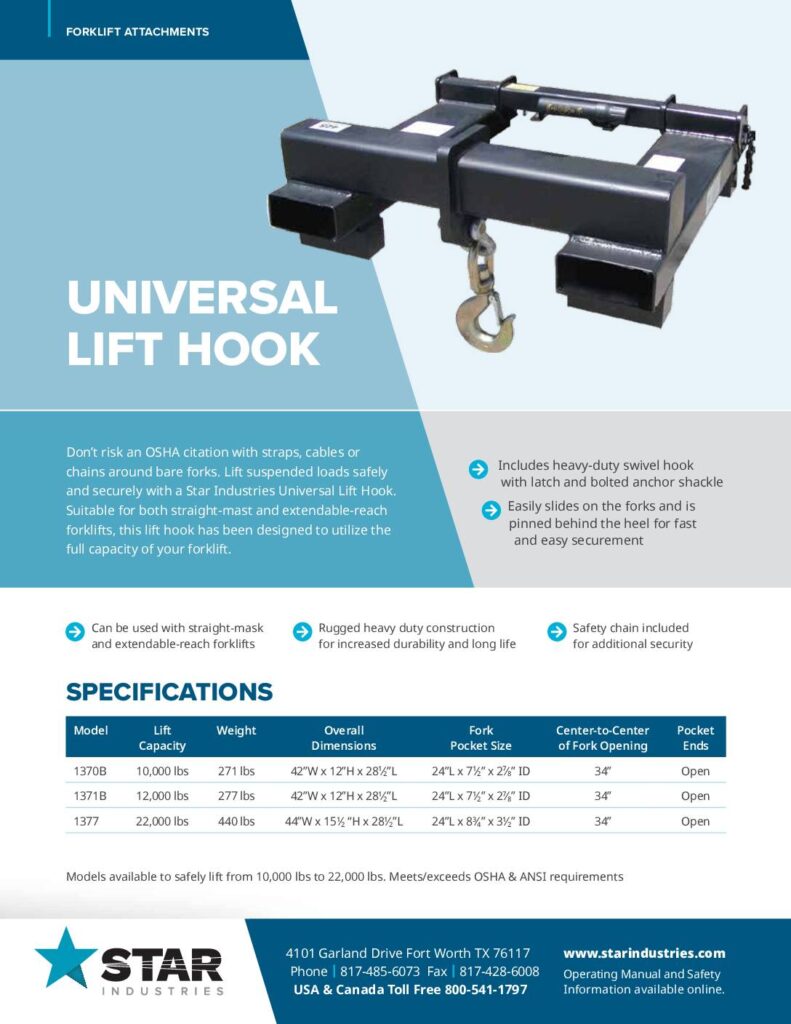

Forklift Hook Attachment – Universal Fit Lift Hooks
- Star Industries Universal Fit Lift Hooks
Includes heavy-duty swivel hook with latch and bolted anchor shackle - Easily slides on the forks and is pinned behind the heel for fast and easy securement
- Can be used with straight-mask and extendable-reach forklifts
- Rugged heavy duty construction for increased durability and long life
- Safety chain included for additional security
Safely handle suspended loads with a forklift
Don’t risk an OSHA citation with straps, cables or chains around bare forks. Lift suspended loads safely and securely with a Star Industries universal lift hook. Suitable for both straight-mast and extendable-reach forklifts, this lift hook has been designed to utilize the full capacity of your forklift.Models available to safely lift from 6,000 lbs to 22,000 lbs
| Model | Lift Capacity | Weight | Overall Dimensions | Fork Pocket Size | Center-to-center of Fork Opening | Pocket Ends |
|---|---|---|---|---|---|---|
| 1366 | 6,000 lbs | 105 lbs | 29”W x 9¾”H x 24¼”L | 6¾” x 3” ID | 20” | Open |

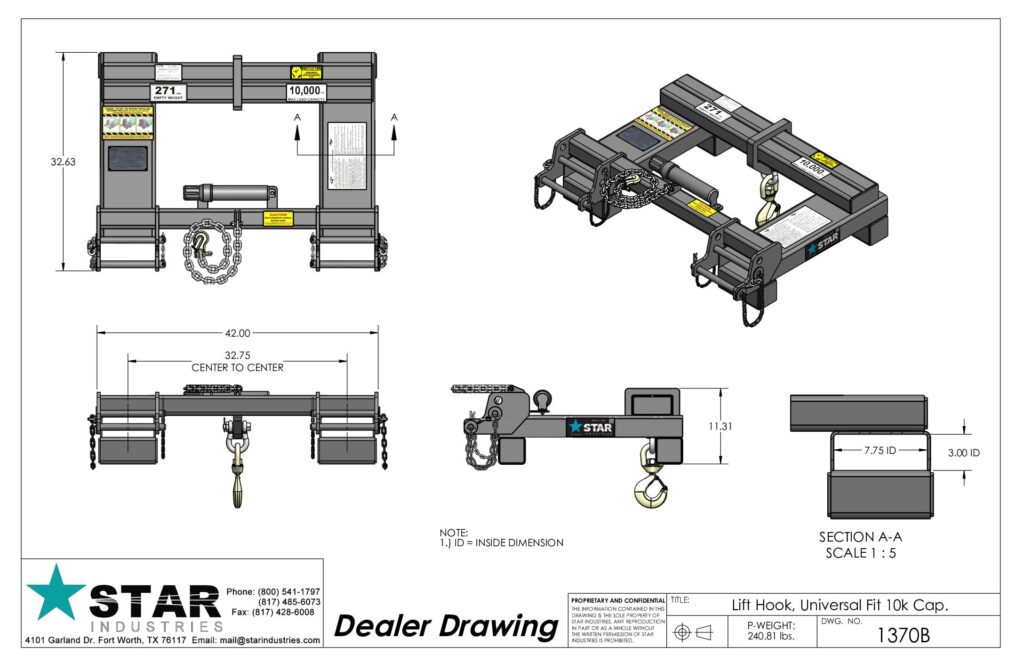

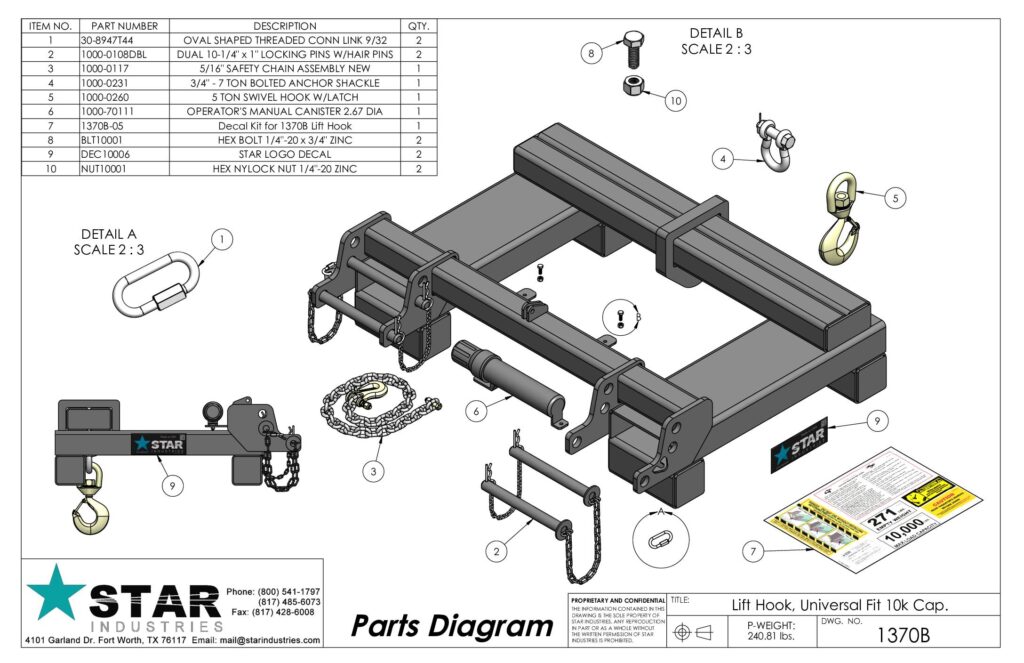

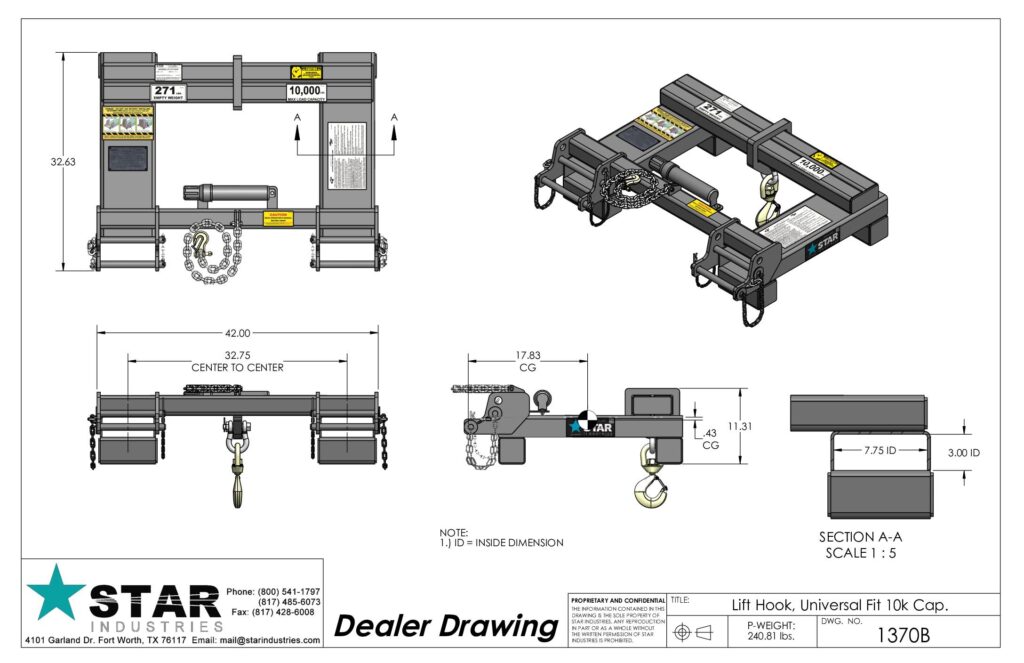

| 1370B | 10,000 lbs | 271 lbs | 42”W x 12”H x 28½”L | 24” long x 7½” x 2⅞” ID | 34” | Open |

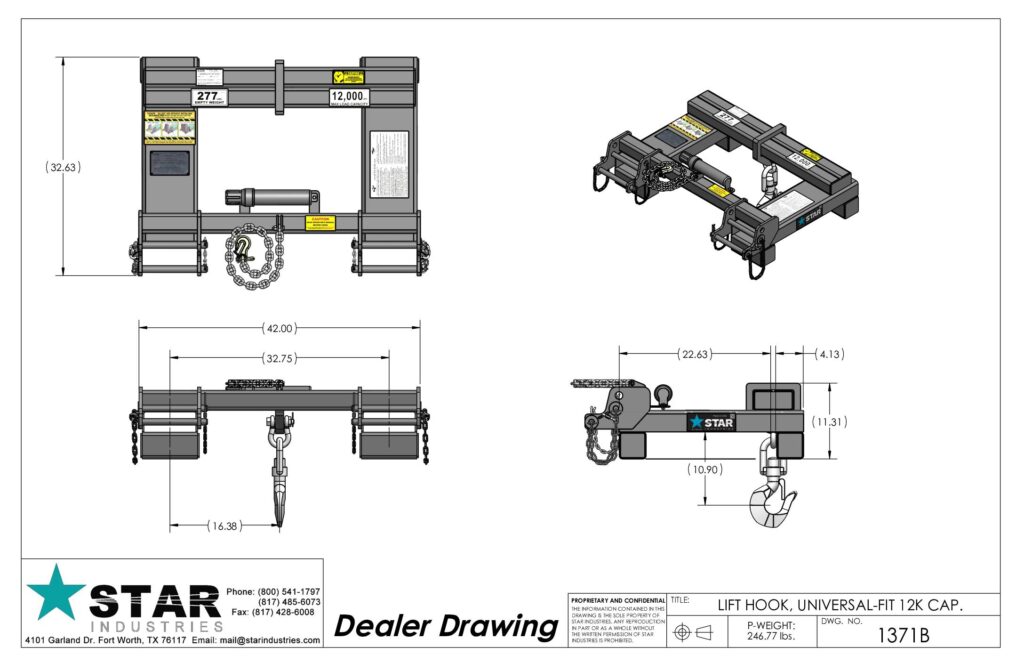

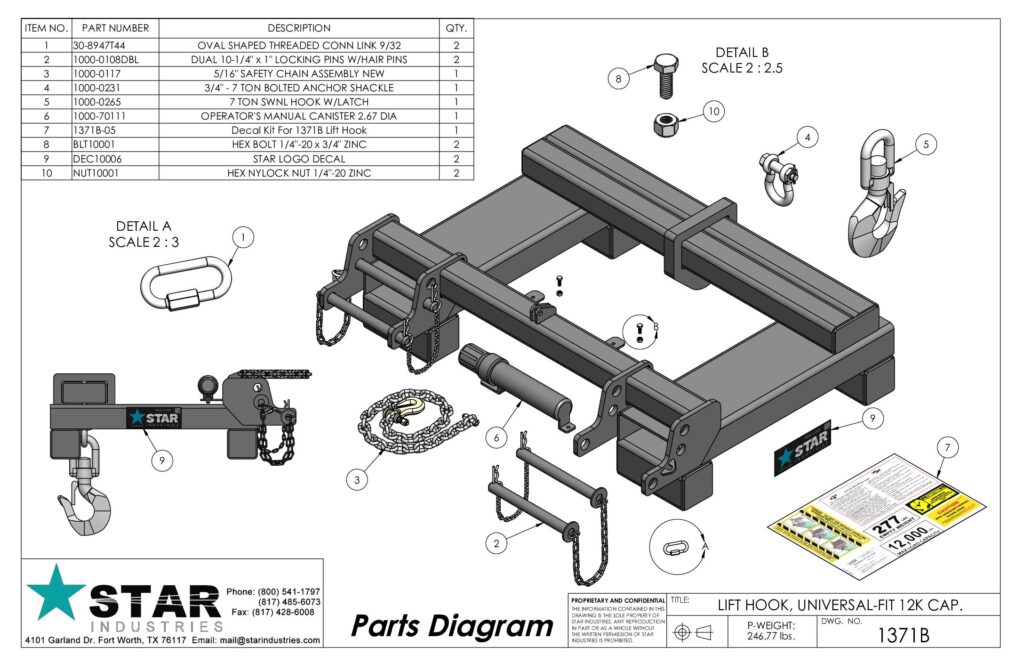

| 1371B | 12,000 lbs | 277 lbs | 42”W x 12”H x 28½”L | 24” long x 7½” x 2⅞” ID | 34” | Open |

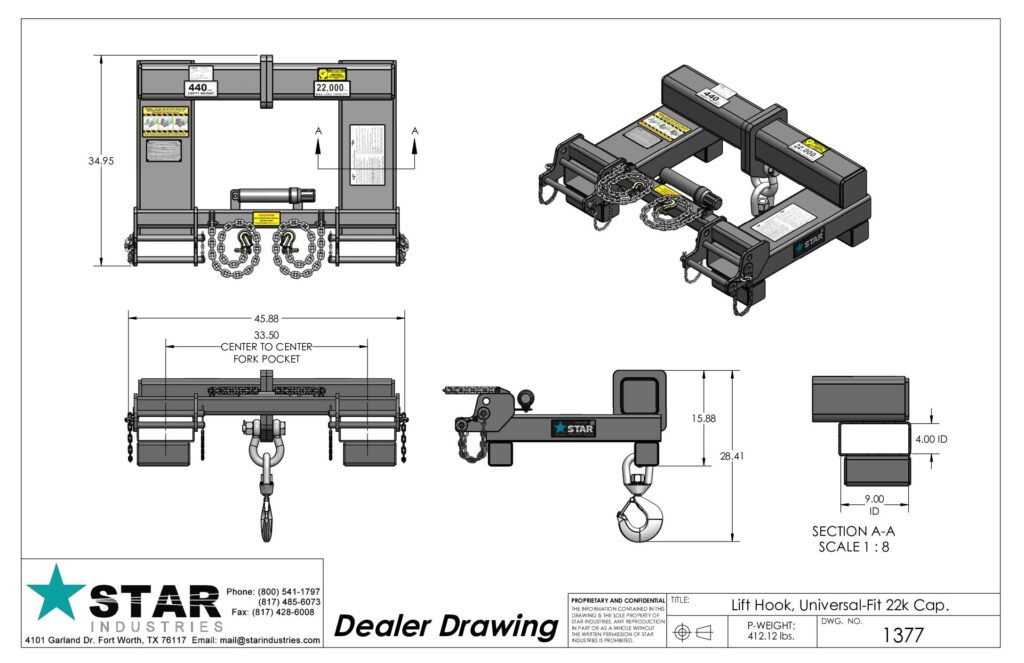

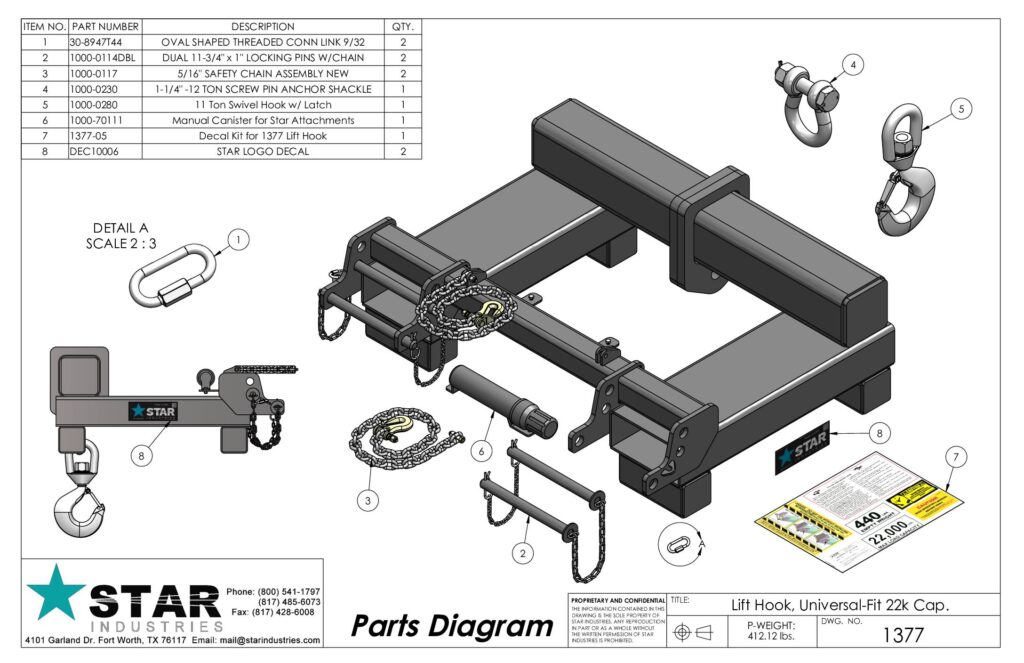

| 1377 | 22,000 lbs | 440 lbs | 44”W x 15½ “H x 28½”L | 24” long x 8¾” x 3½” ID | 34” | Open |
Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook. Operating manual/safety information available online and by calling 1-800-541-1797.
Lift Loads Safely with a Forklift Hook Attachment
Moving awkward suspended loads around the yard or job site can be challenging. Moving by crane is expensive and not always feasible. Free rigging by wrapping chains around the bare forks is dangerous (and an OSHA violation).
A forklift hook solves this problem by using your forklift with a universal lift swivel hook to safely lift and move suspended loads without needing tie-downs or chains around bare forks.
Features of Forklift Hook Attachments
General contractors typically use forklift hooks for multiple uses on the job site such as lifting HVAC systems, roofing products, and tilt wall erectors. Key features of the attachment include:
Universal Fit
The forklift hook attachment is suitable for both extended-reach and straight-mask forklifts. It easily slides on the forks and is secured by pins behind the heel.
Robust Construction
The robust welded construction allows them to manage substantial weight without compromising on safety.
Swivel Hook and Locking Clasp
Forklift hook attachments have a swivel hook that can rotate 360 degrees to make the load easy to maneuver and a locking clasp to secure the chain.
Big Lift Capacity
Depending on the model, a forklift lifting hook capacity ranges from 6,000 lbs to 22,000 lbs.
Benefits of Forklift Lifting Hooks
Forklift hook attachments bring numerous benefits to material handling operations. Here are some key advantages:
Versatility
A forklift lifting hook expands the tasks forklifts can perform, enabling them to raise and move irregular items like pipes and beams.
Improved Efficiency
Hook attachments allow forklifts to handle diverse loads, reducing the need for different equipment. This boosts efficiency and productivity, enabling operators to work faster with fewer interruptions.
Enhanced Safety
Safety is a key consideration in material handling operations. Forklift hook attachments offer secure lifting points and help minimize the risk of load slippage. Swivel hooks add to safety by enabling operators to position loads with less maneuvering.
Cost-Effectiveness
Investing in forklift hook attachments can save costs by reducing the need for extra equipment and cutting labor expenses for handling various loads, leading to a higher return on investment.
Industry Applications for Forklift Hook Attachments
These attachments improve material handling in various industries. Here are some examples of their benefits:
Construction
Forklift hooks are useful in construction for lifting and moving heavy materials like steel beams, concrete pipes, and large planks. They improve efficiency by minimizing downtime and speeding up project completion.
Manufacturing
Manufacturing facilities handle various raw materials and finished products. Hook attachments help operators manage these loads efficiently, ensuring smooth production and timely deliveries.
Warehousing and Distribution
Lifting hooks enhance warehouses and distribution centers by handling non-palletized goods like bulky furniture and oversized equipment, improving storage and order fulfillment times.
Shipping and Logistics
In shipping and logistics, forklift hook attachments are invaluable for loading and unloading cargo from trucks, ships, and containers. The ability to securely lift and move heavy or awkwardly shaped loads enhances the efficiency of logistics operations and minimizes the risk of damage during transit.
Need to use your forklift to lift more? Contact our team to find the right hook for your equipment.
