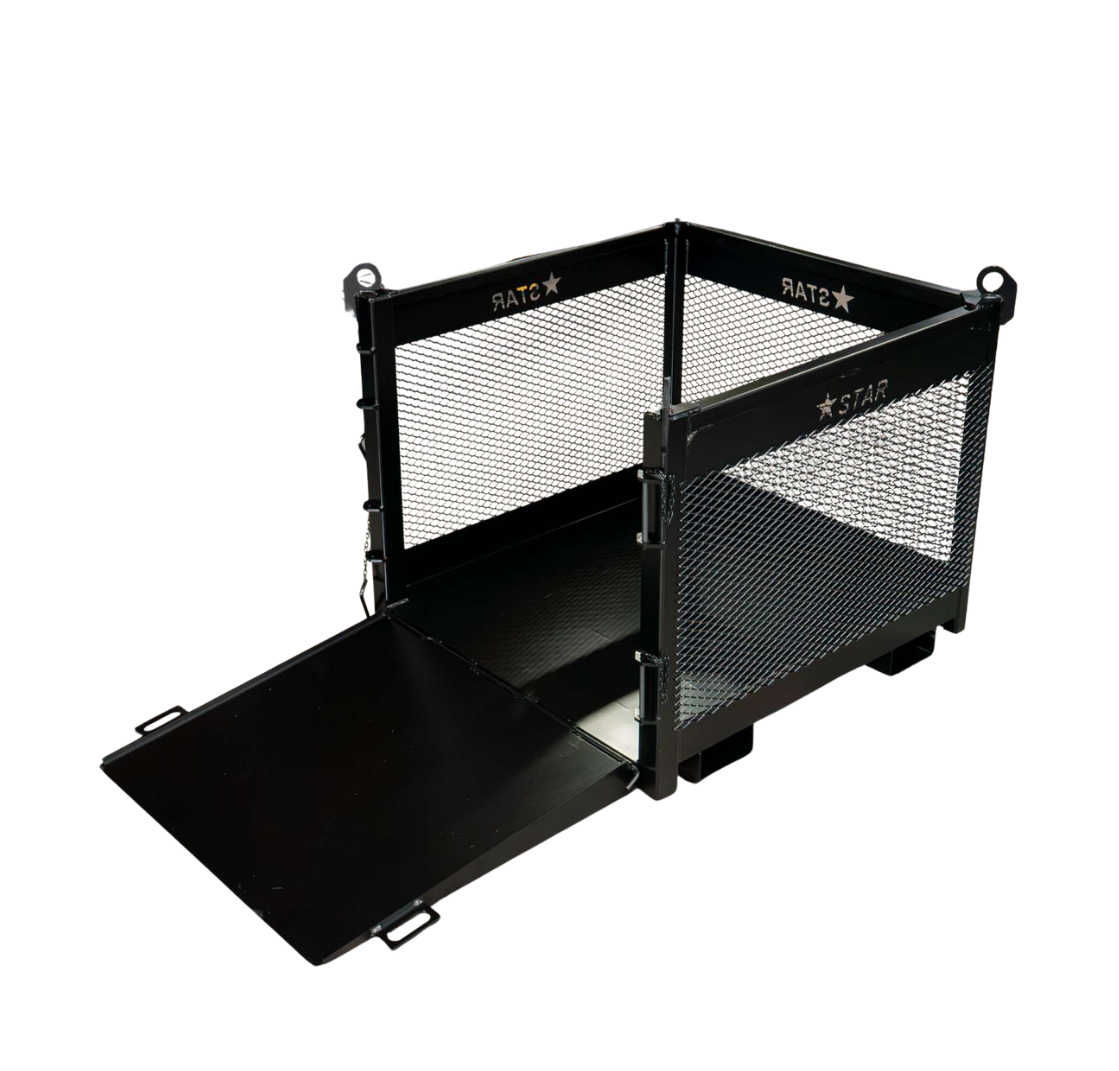

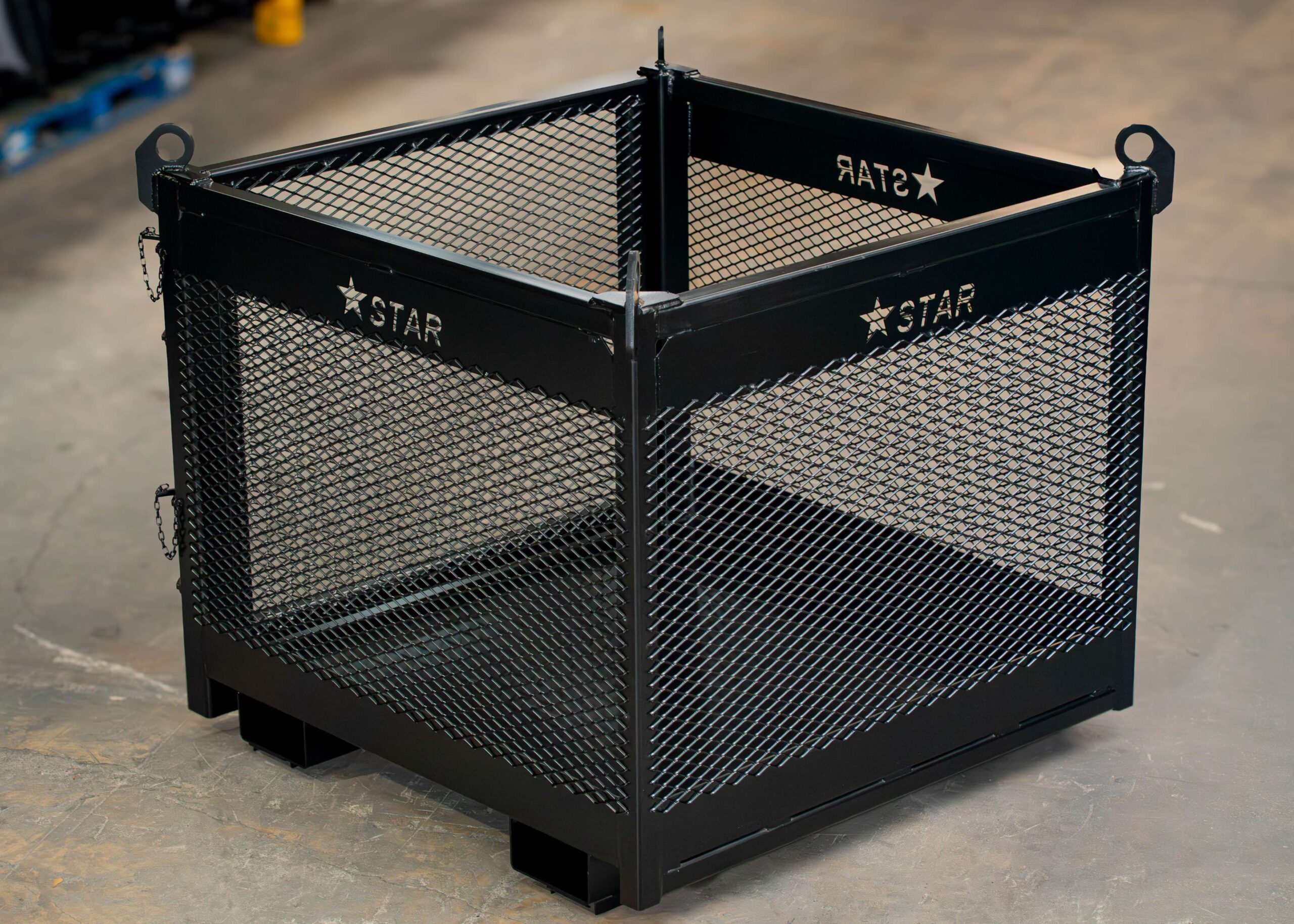

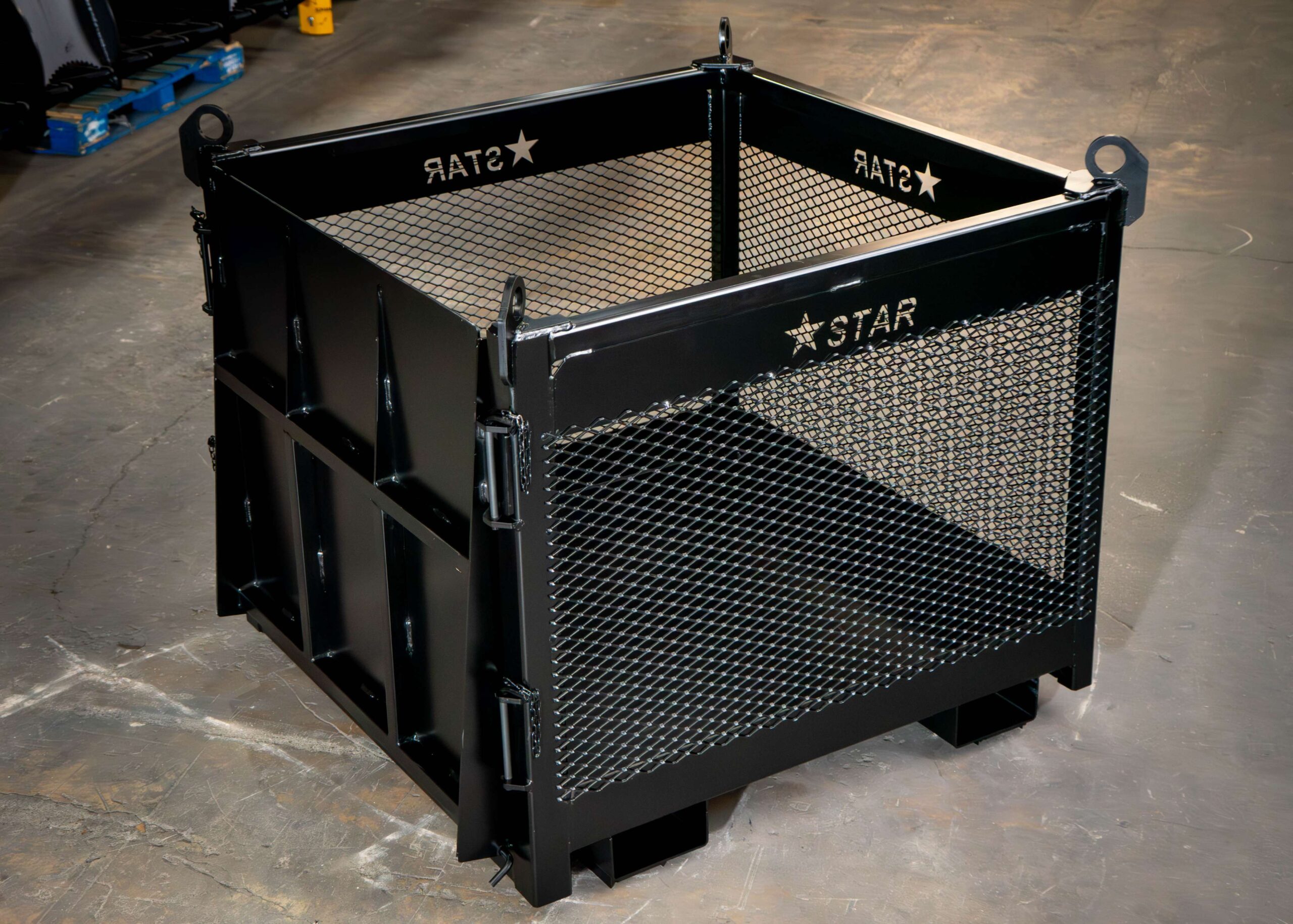

Crane Material Basket
- Constructed from ASTM A500 Grade B structural steel tubing with full-penetration structural welds.
- Heavy-duty floor available in 3/16″ steel plate or expanded metal, with steel mesh side panels for visibility & containment.

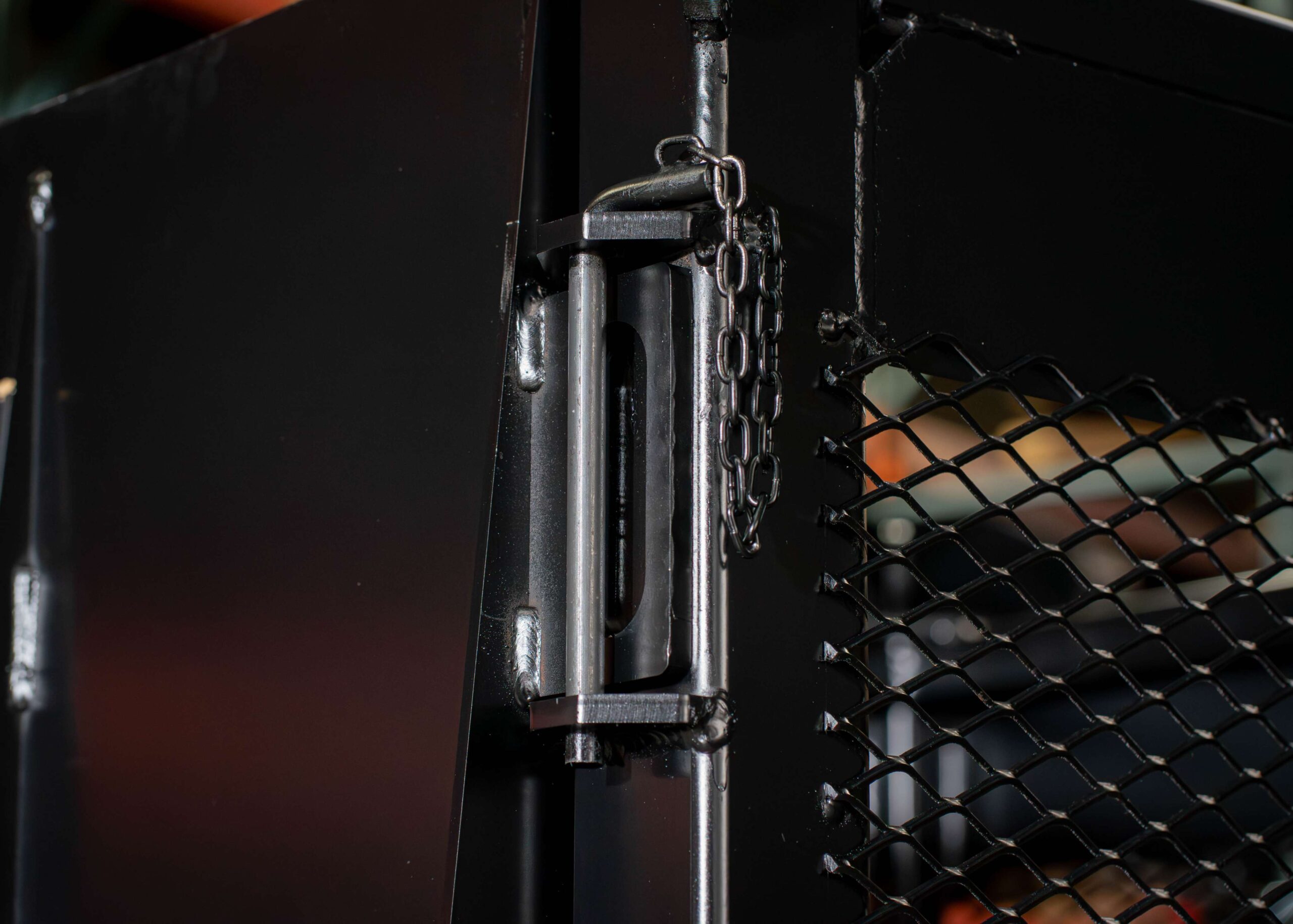

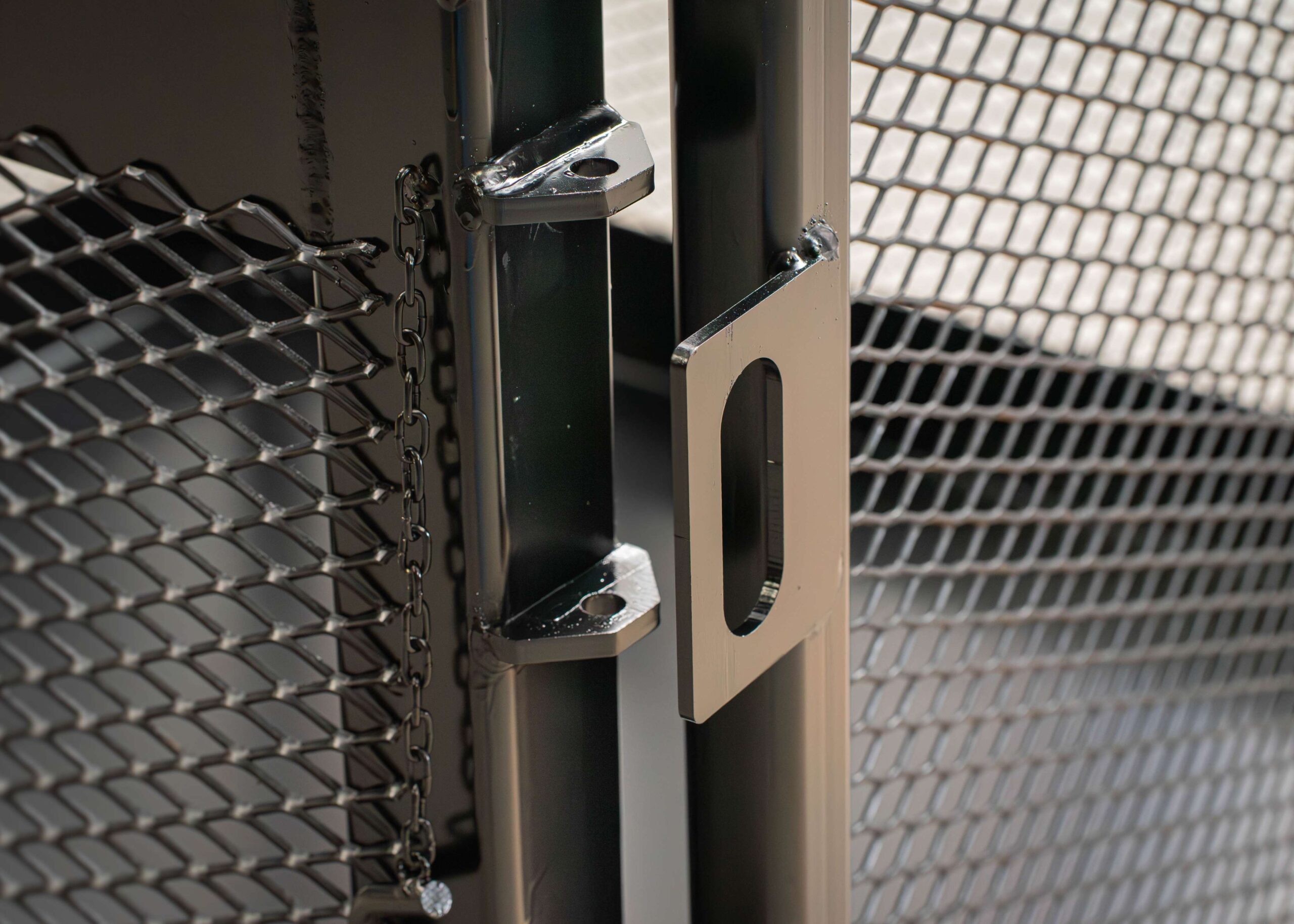

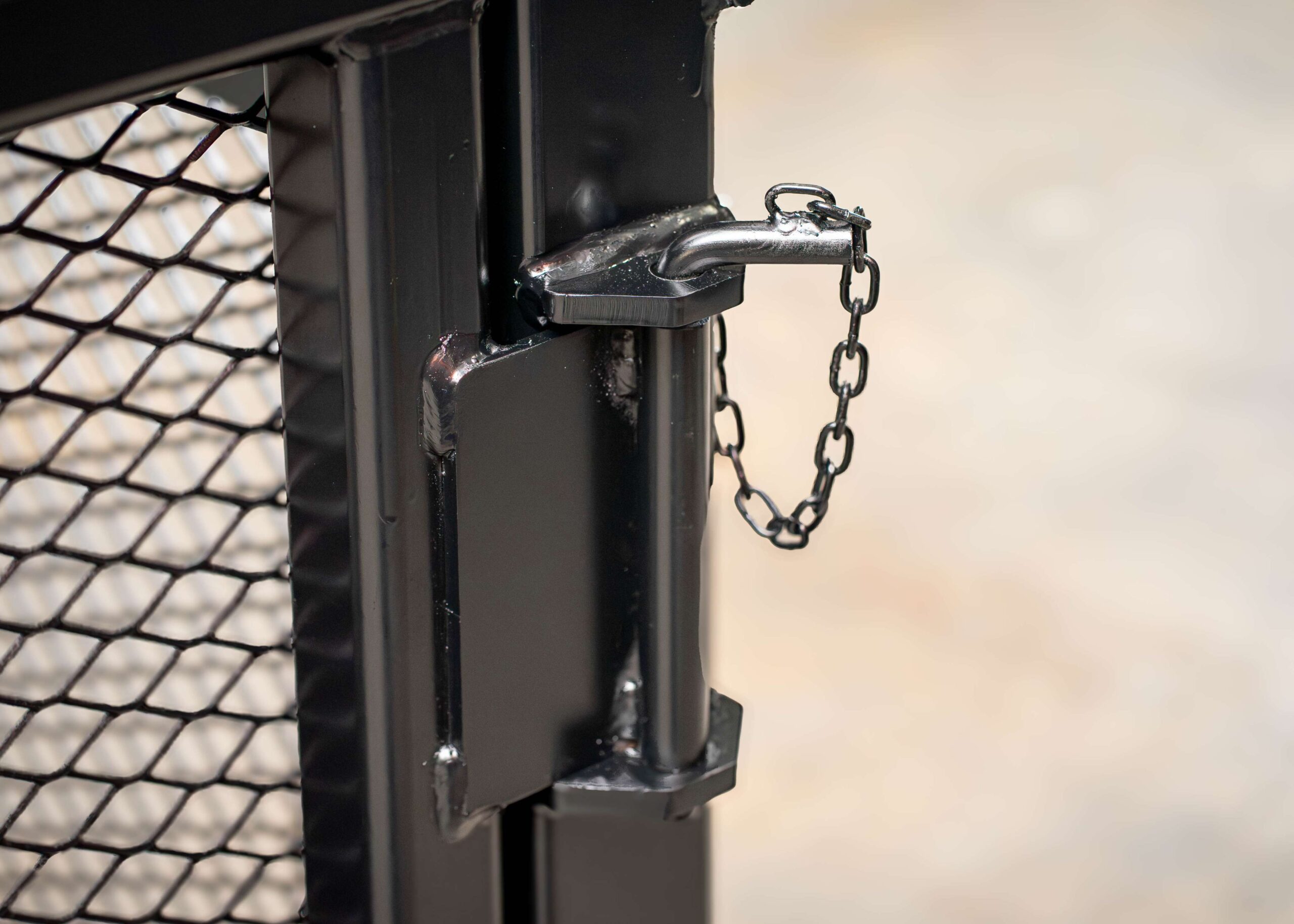

- Standard safety features include a safety chain door, spring-loaded or chain gate, welded tie-down points, and floor drain holes.
Lift & stage materials safely at elevation with the Star Industries Crane Material Basket.

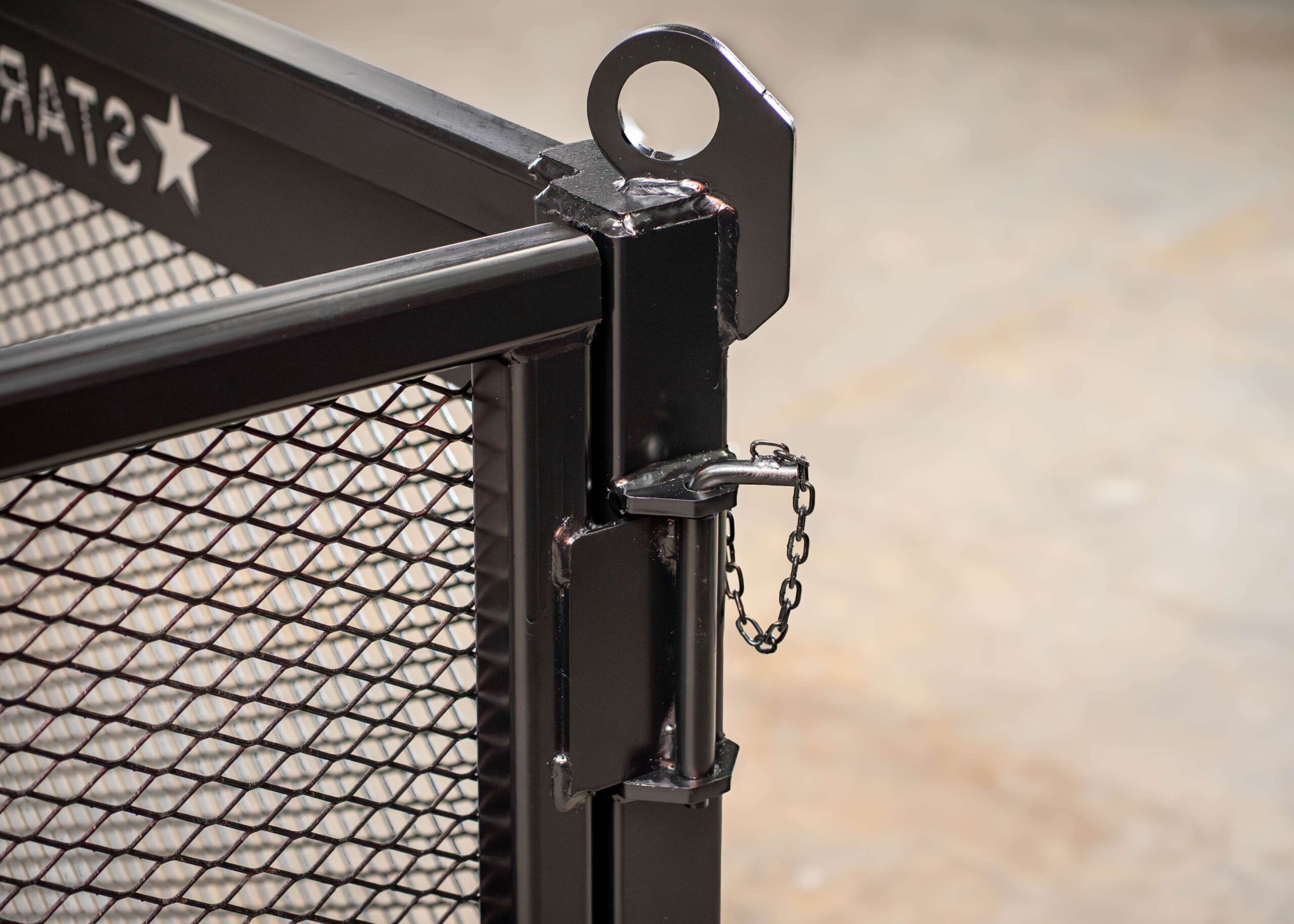

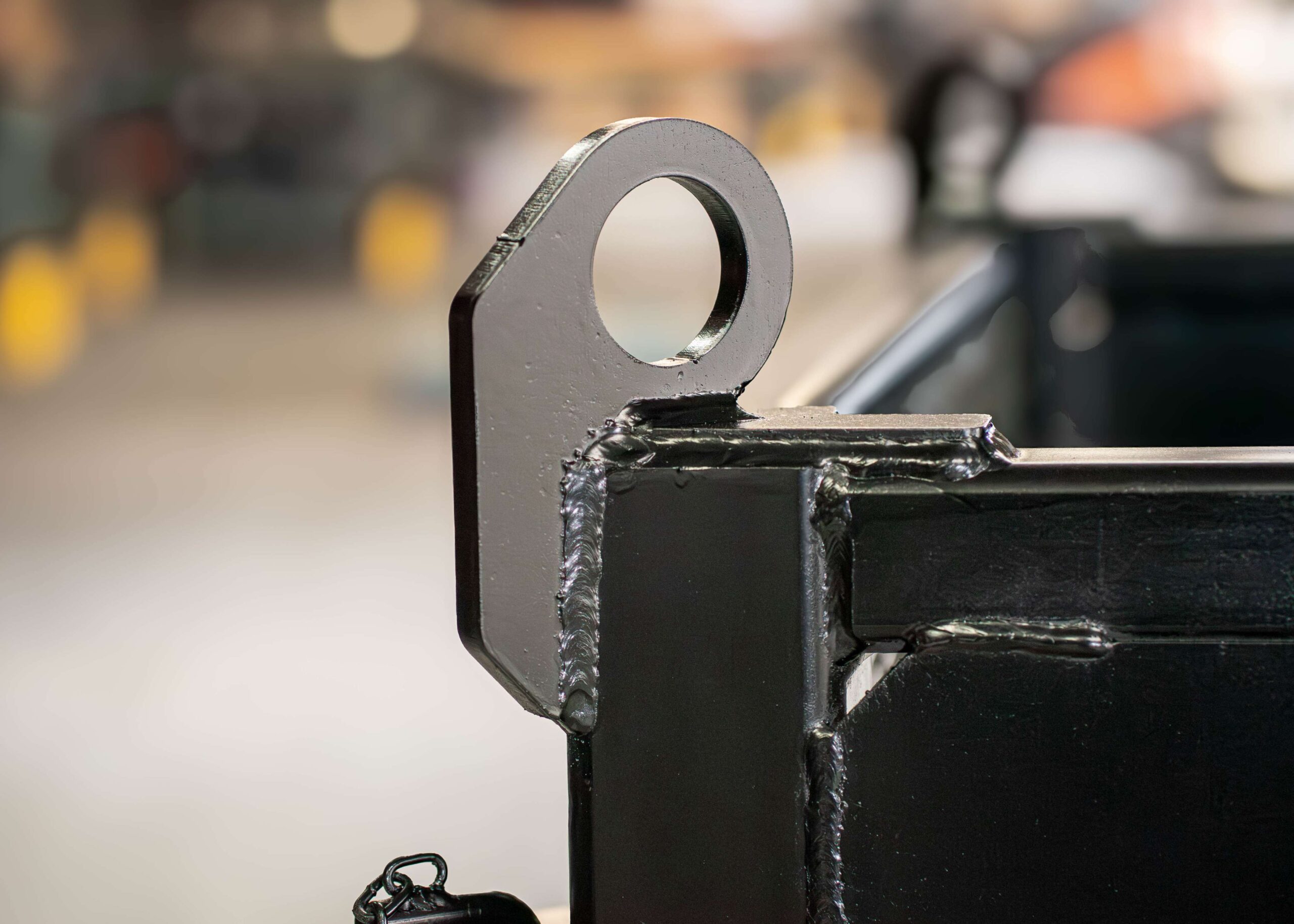

Designed for commercial construction, industrial facilities, and infrastructure projects, this basket provides a reliable solution for transporting palletized or loose materials using mobile, tower, or overhead cranes.- 4-point top pick integrated lifting lugs support a balanced 4-point lift
- Working Load Limit (WLL) 4,000 lbs (most popular capacity)
- Complies with OSHA 1926 Subpart H and aligns with ASME B30.20 & BTH-1 standards
Rigging Requirements:

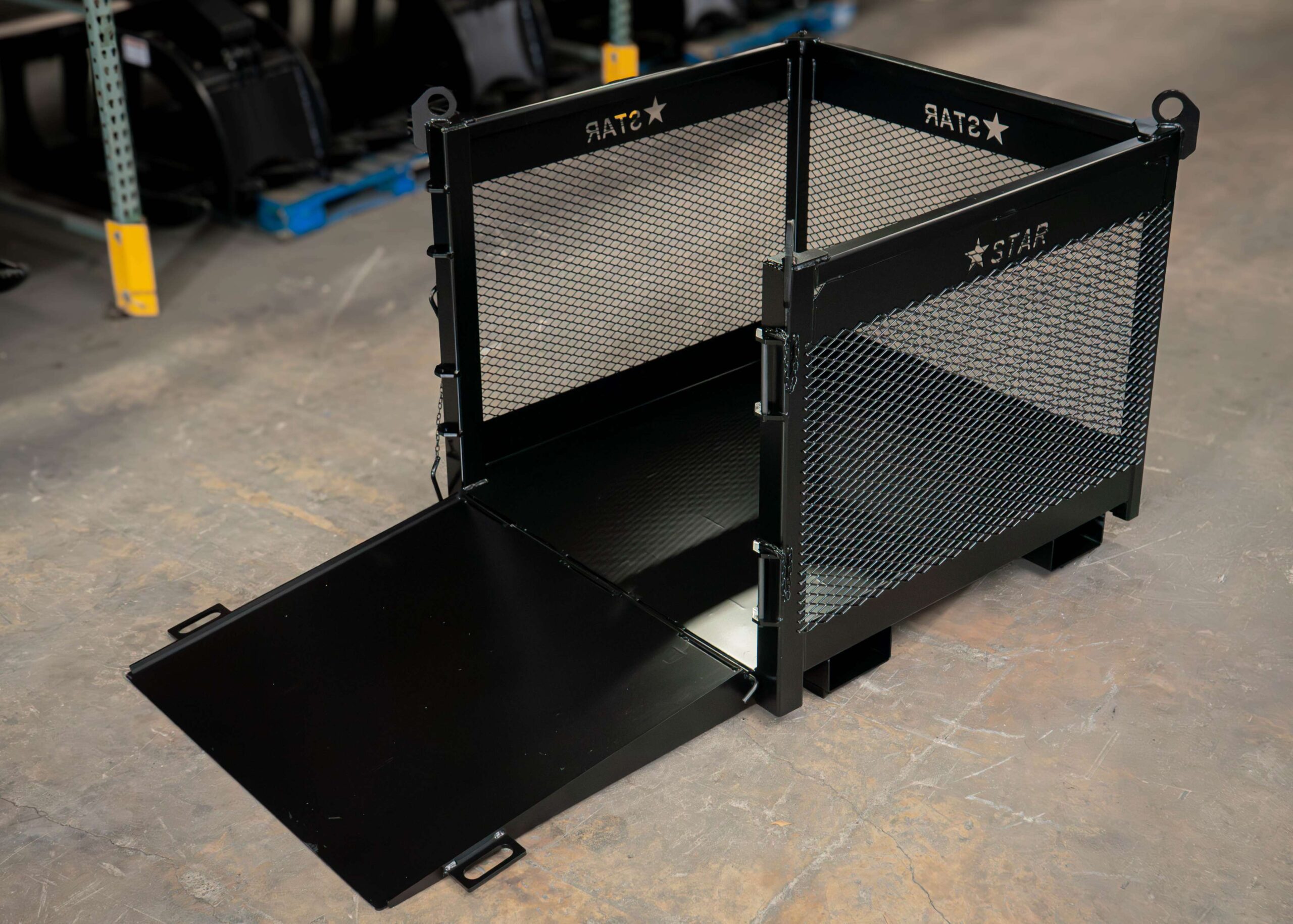

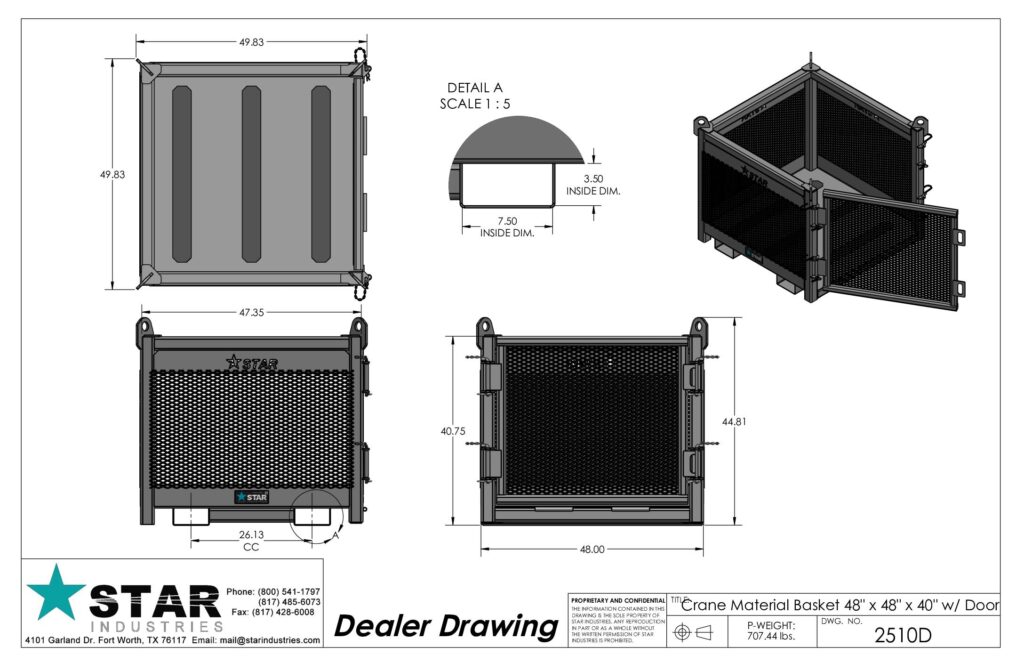

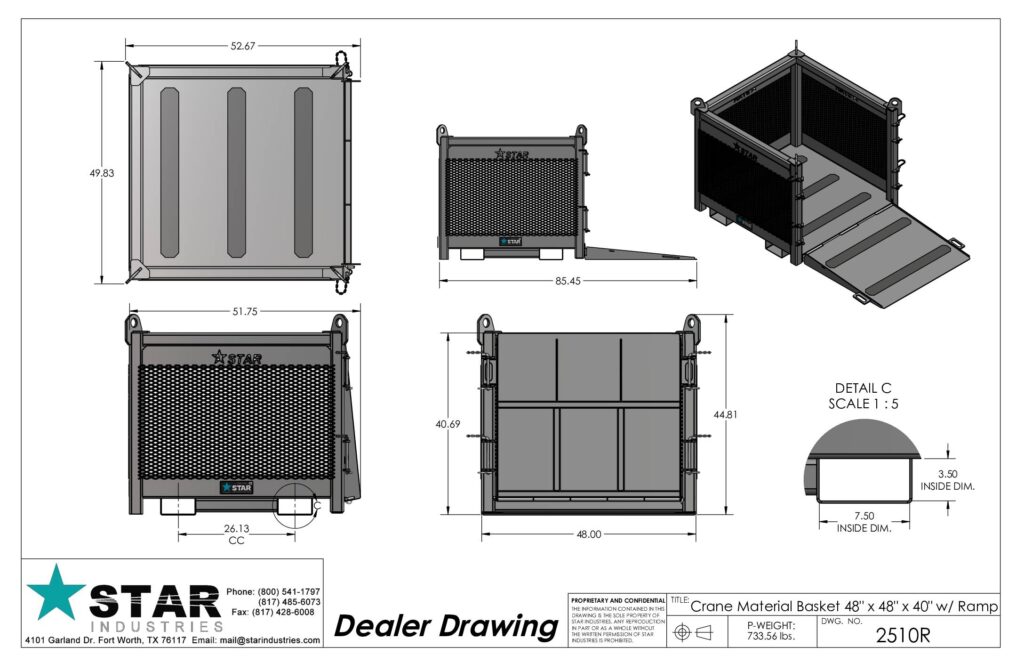

Designed for use with chain or wire rope slings in a 4-point top pick configuration. Recommended sling angle is 60° or greater, with evenly distributed loads required.| Model 2510D | Model 2510R | |
| Feature | Includes Door | Includes Ramp |
| Dimensions | 48x48x48 | 48x48x48 |
| WLL | 4,000 lbs | 4,000 lbs |
| Fork Pocket ID | 3.5″ x 8.25 | 3.5″ x 8.25 |
| Spaced on Center | 31.5″ | 31.5″ |
| Empty Weight | 675 | 700 |
| Options | Casters |
