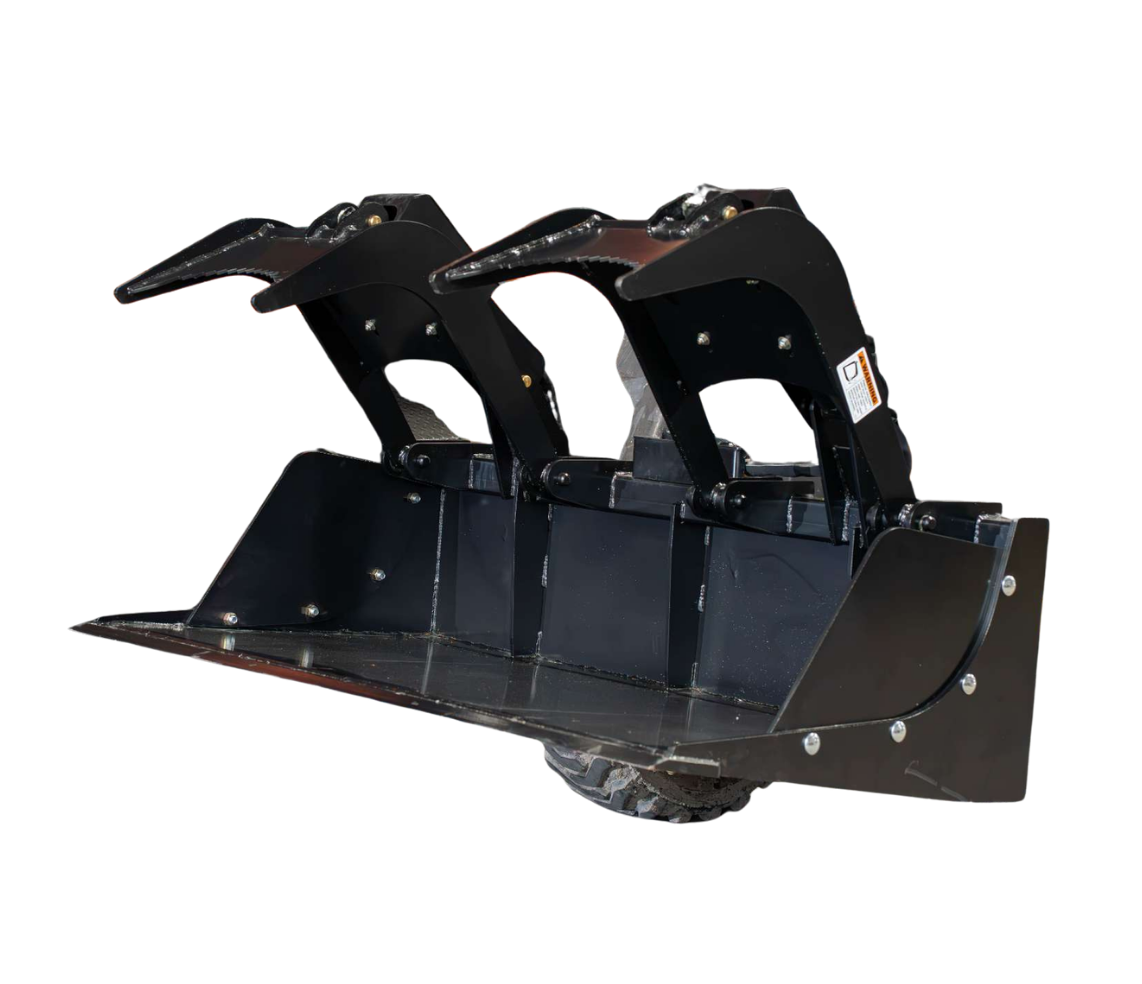

Grapple bucket with bolt on end plates
Steel covers and shields protect hydraulic lines
Grapple Bucket Rear View
Grapple Bucket opens extra wide
Heavy duty construction
Grapple Bucket onsite
Grapple Bucket side view
Grapple bucket with bolt on end plates
Skid Steer Grapple Buckets
- Independent operating cylinders adjust for uneven loads
- Hydraulic lines and grapple cylinders fully covered to protect from accidental damage
- Xtreme duty quick tach

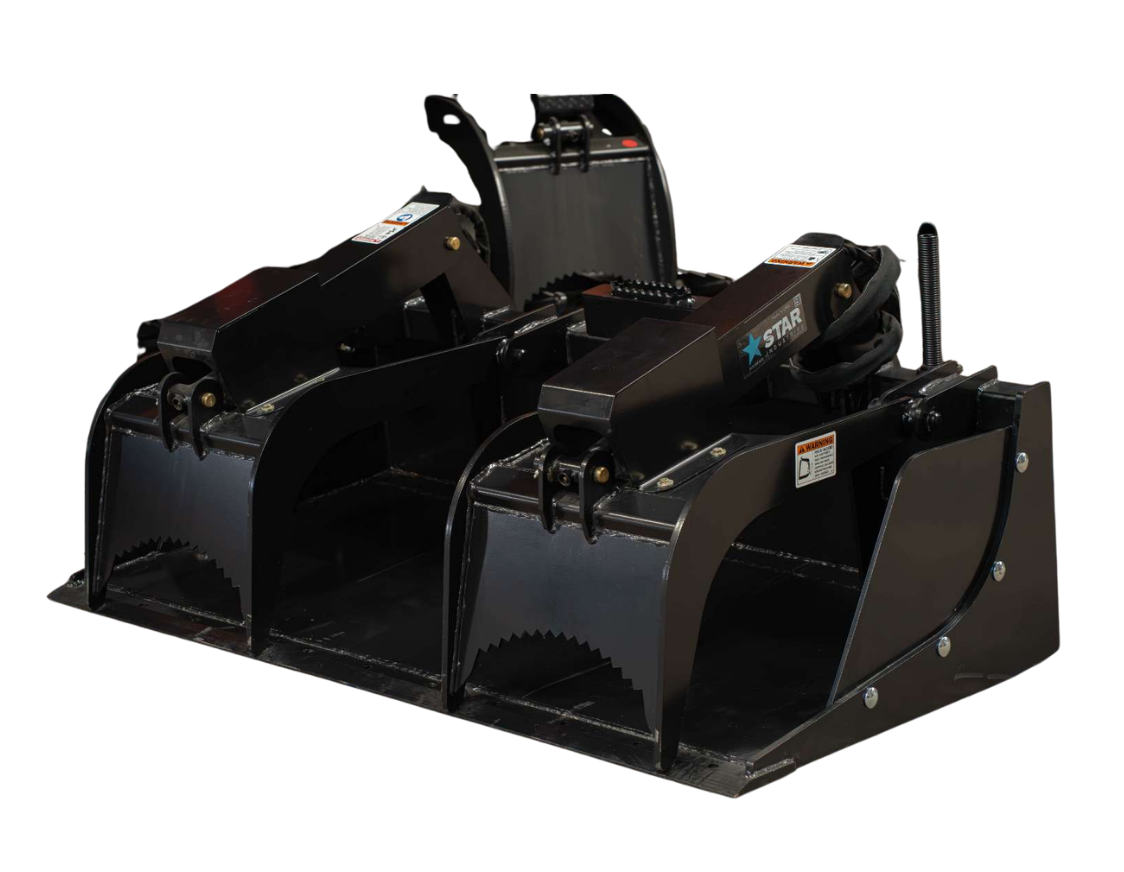

Move bulky, hard-to-handle materials easily and securely with a Star Industries Grapple Bucket
The grapple bucket opens extra wide for a full load and the end plates help contain loose materials.- Rugged heavy-duty construction for dependability and long life
- Built-in covers protect fittings
- Cutting edges are punched for optional bolt-on-blade
- Lines zip tied to heavy spring to keep from getting pinched
| Grapple | Heavy Duty 66” | Heavy Duty 72” | Demolition Grade 72” | Demolition Grade 78” | Demolition Grade 84” |
|---|---|---|---|---|---|

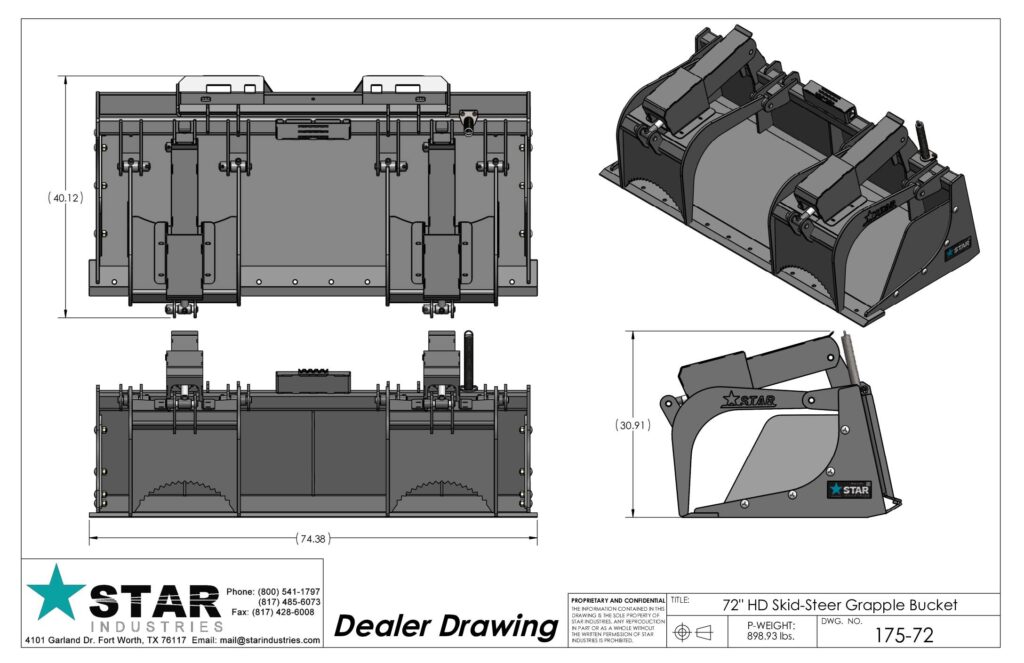

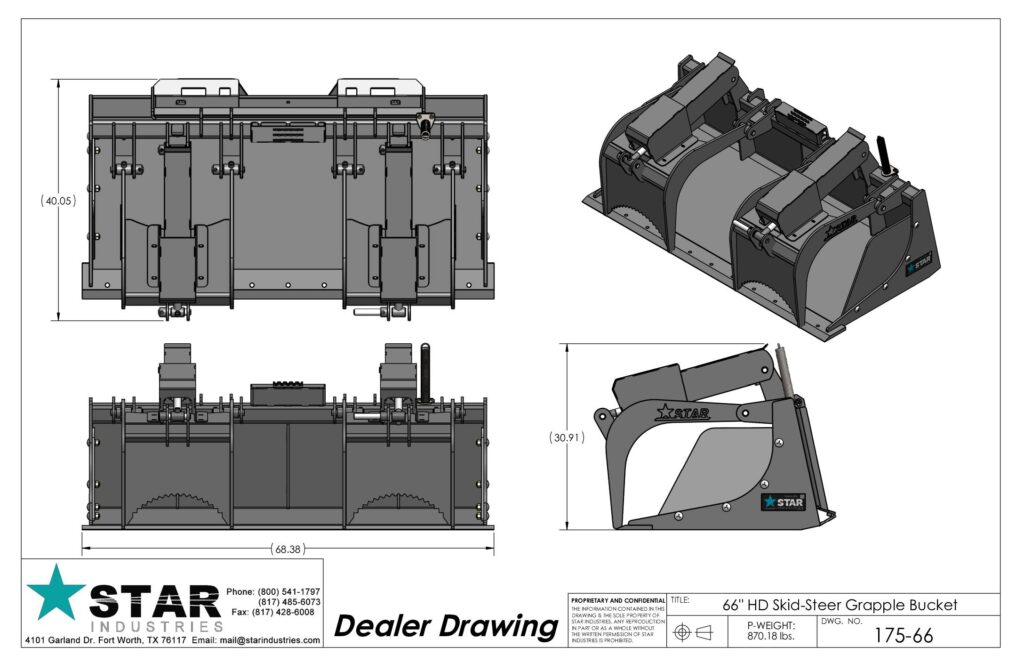

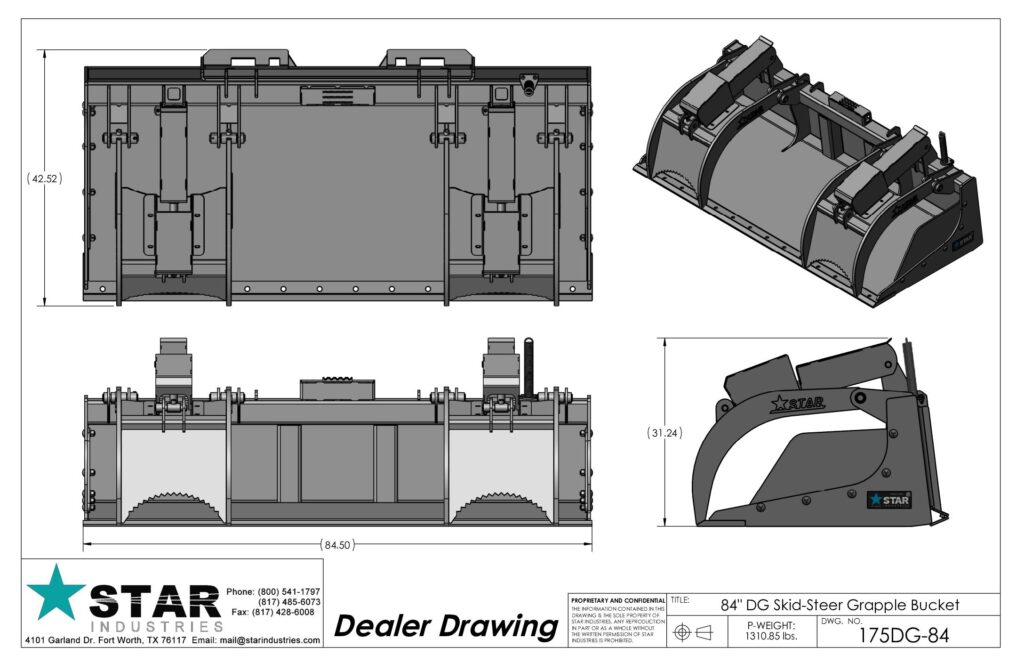

| Model | 175-66 | 175-72 | 175DG-72 | 175DG-78 | 175DG-84 |
| Width I.D. | 66” | 72” | 72” | 78” | 84” |
| Grapple Opening | 38 ½” | 38 ½” | 45” | 45” | 45” |
| Grapple Capacity | 16.5 cuft | 18 cuft | 24 cuft | 26 cuft | 28 cuft |
| Depth | 34” | 34” | 39” | 39” | 39” |
| Back Height | 19” | 19” | 21” | 21” | 21” |
| Bucket Bottom | ¼” Plate | ¼” Plate | ¼” Plate | ¼” Plate | ¼” Plate |
| Bucket Back | 3/16” Plate | 3/16” Plate | 3/16” Plate | 3/16” Plate | 3/16” Plate |
| Sides | ½” Plate | ½” Plate | ½” Plate | ½” Plate | ½” Plate |
| Bottom Wear Protection | ½” Ribs | ½” Ribs | ½” Ribs | ½” Ribs | ½” Ribs |
| Grapple Thickness | ½” | ½” | ½” | ½” | ½” |
| Cutting Edge | ¾” x 6” | ¾” x 6” | 1” x 8” | 1” x 8” | 1” x 8” |
| HD Welded Hyd Cylinders | 2” x 10” x 1 ¼” | 2” x 10” x 1 ¼” | 2” x 10” x 1 ¼” | 2” x 10” x 1 ¼” | 2” x 10” x 1 ¼” |
| Hyd Hoses & Flat faced Couplers | Included | Included | Included | Included | Included |
| Empty Weight | 775 lbs | 865 lbs | 1,090 lbs | 1140 lbs. | 1200 lbs. |
Operating manual/safety information available online and at 1-800-541-1797
Skid Steer Grapple Buckets Make Jobs Easier to Handle
A skid steer loader grapple bucket is an attachment that combines the features of a traditional skid steer bucket with a grapple mechanism. The bucket’s grapple arms can grasp and secure irregular or bulky loads, making it ideal for scooping, lifting, and dumping irregular, hard-to-handle materials.
How Grapple Bucket for Skid Steer Equipment Works
The design of a grapple bucket typically includes two independently controlled grapple arms that can open extra wide and close over the bucket and adjust for uneven loads. The grapple bucket’s end plates help contain loose materials.
This allows for precision handling and secure transport of materials, even over rough terrains.
How a Skid Steer Grapple Bucket Assists Operators
The primary advantage of using a grapple bucket is its ability to help skid steer operators move bulky and hard-to-pick-up materials such as rubbish, trees and shrubs, concrete and other construction debris.
Key benefits of a skid steer loader grapple bucket include:
- The ability to handle diverse materials: The grapple mechanism allows operators to handle a variety of materials that would be difficult or impossible to manage with a standard bucket. This includes brush, logs, rocks, scrap metal, construction debris, and more.
- Enhanced Control: With the ability to adjust each grapple arm independently, operators can achieve greater control and precision when picking up and transporting items. This is particularly useful for handling uneven or awkwardly shaped loads.
- Improved Safety: By securely gripping materials, the grapple bucket minimizes the risk of items falling or shifting during transport, thereby enhancing safety on the job site.
- Time and Labor Savings: The ability to quickly and efficiently move large or bulky items reduces the need for manual labor and speeds up the completion of tasks. This leads to increased productivity and cost savings.
Industry Uses for a Skid Steer Grapple Bucket
Skid steer loader grapple buckets are used across various industries, each leveraging the attachment’s unique capabilities for specific tasks.
Construction
In the construction industry, grapple buckets are helpful for site preparation and cleanup. They remove debris, transport building materials, and clear away obstacles. The ability to handle a variety of materials, from concrete to timber, makes them a versatile tool on any construction site.
Landscaping and Agriculture
Landscapers and farmers rely on skid steer grapple buckets for tasks such as clearing brush, moving logs, and handling hay bales. The attachment’s ability to efficiently grasp and transport organic materials is useful for maintaining large land areas and managing farm operations.
Forestry
In forestry, grapple buckets are essential for moving felled trees, branches, and stumps. The robust design and firm grip of the grapple arms makes it easier to handle heavy and irregularly shaped wood, enhancing the productivity of logging operations.
Waste Management and Recycling
Waste management facilities and recycling centers use grapple buckets to sort and transport scrap metal, plastics, and other recyclable materials. The ability to securely grasp and maneuver large quantities of waste streamlines the processing and handling of recyclable goods.
Demolition
During demolition projects, grapple buckets tear down structures and remove debris. The attachment’s strength and precision make it ideal for handling the heavy and often hazardous materials encountered in demolition work.
With Star Industries grapple buckets, you can finally get your arms around almost any job on the construction site. Want to learn more about our skid steer attachments? Contact our team today.
