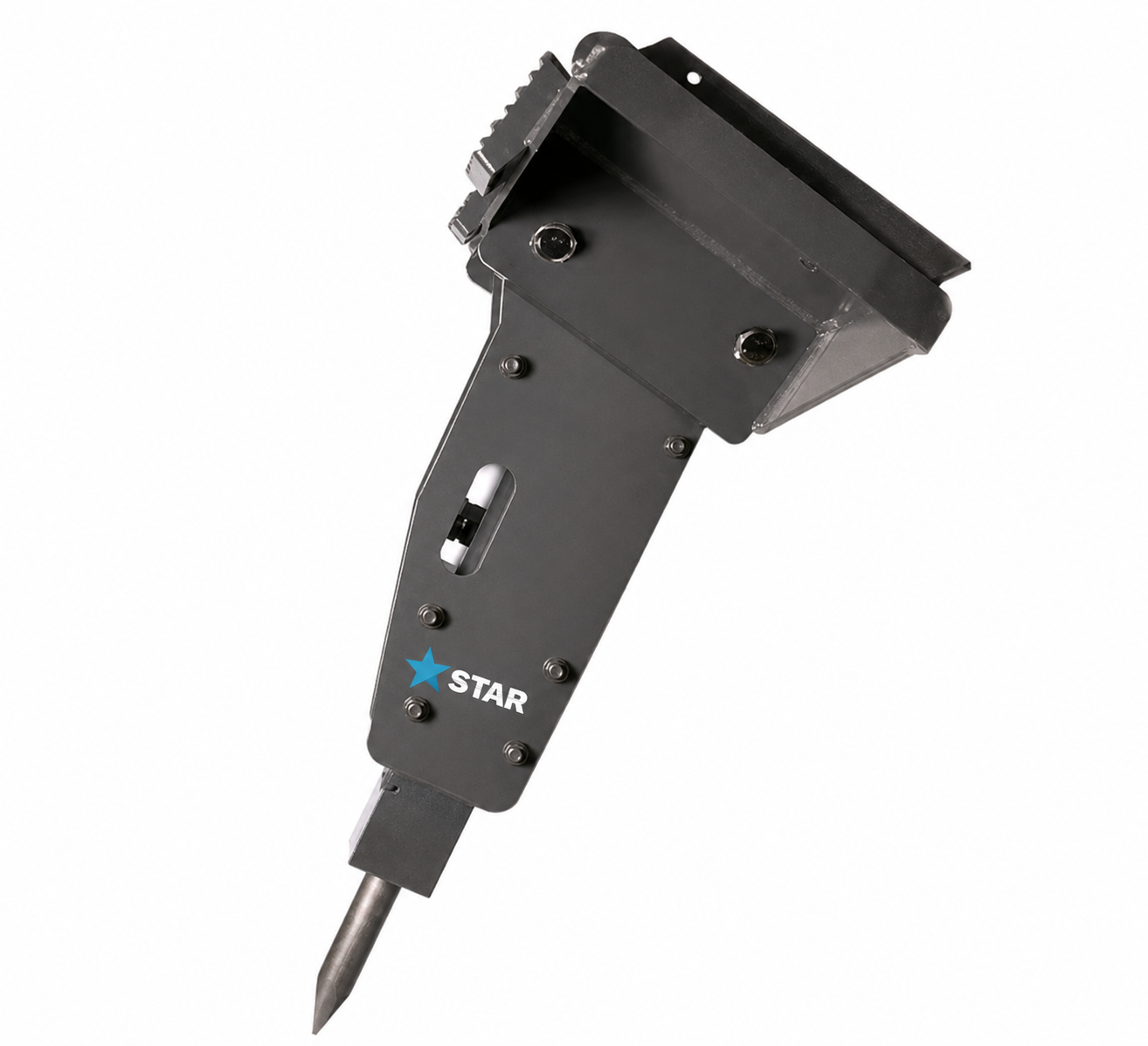

TLB Hydraulic Breaker
- Accumulator-free hybrid design combines gas and hydraulic power with fewer moving parts for dependable performance and reduced maintenance.
- Long-stroke piston and cushion chamber technology maximize impact while reducing recoil.
- Dual retainer pin design maintains proper tool alignment for even wear and longer tool life.
Conquer Tough Jobs with the TLB Hydraulic Breaker from Star
Break through concrete, asphalt, rock, and other tough materials with a Star Hydraulic Breaker designed specifically for Tractor Loader Backhoes (TLBs). Ideal for demolition, utility installation, road repair, trenching, foundation work, and site preparation, this breaker adds powerful hydraulic breaking capability to the backhoe you already own.- Designed for TLBs with a quick-coupler mounting system
- Ideal for demolition, concrete breaking, rock excavation, trenching, road repair, and utility installation
- Heavy-duty construction is engineered for demanding construction, utility, municipal, and rental fleet environments.
| SKU | Impact Energy Class | Impact Frequency | Working Weight — 1pc top mount | Working Weight — 2pc top mount | Working Weight — box bracket | Operating Pressure | Oil Flow | Chisel Diameter | Hose Size | Base Carrier Class | N2 Gas Charge Pressure |
| 212-BH-JDCASE | 825 ft-lb (1,118 Nm) | 550–1,000 bpm | 672 lbs (305 kg) | 694 lbs (315 kg) | 849 lbs (385 kg) | 1,450–2,320 PSI (10–16 MPa) | 9.2–15.3 GPM (35–60 L/min) | 3.0″ (75 mm) | 1/2″ | 3.8–6 metric tons | 8 bar (116 psi) |
