Transport mesh with ease using a Star Industries Wire Mesh Handler
Wire Mesh Handler in-action
Designed to use with a forklift or crane
Maneuver wire mesh with ease
Wire Mesh Handler front
Up to 7000 lbs capacity
Transport mesh with ease using a Star Industries Wire Mesh Handler
Wire Mesh Handlers
- Star Industries Wire Mesh Handlers
Lift & transport wire mesh with ease - Up to 7,000 lbs capacity
- Suitable for forklift or crane
Take the hard work and hassle out of loading and moving wire mesh panels
The Star Industries Wire Mesh Handler is primarily designed for use with a forklift; however, pick up points have been provided for use with a crane.- Empty weight — 1025 lbs.
- Effective length — 13 ft
- Effective width — 7 ft. 5 in.
- Lifting chain — 5/16” grade 100 rated for lifting
- Accepts forks up to 2-3/8 inches thick x 7 inches wide
- Complies with ASME BTH-1-2008, design of below the hook lifting devices design category B service class 1
- Designed to a safety factor of 3:1
| Model | Description | Size | Capacity | Weight |
|---|---|---|---|---|

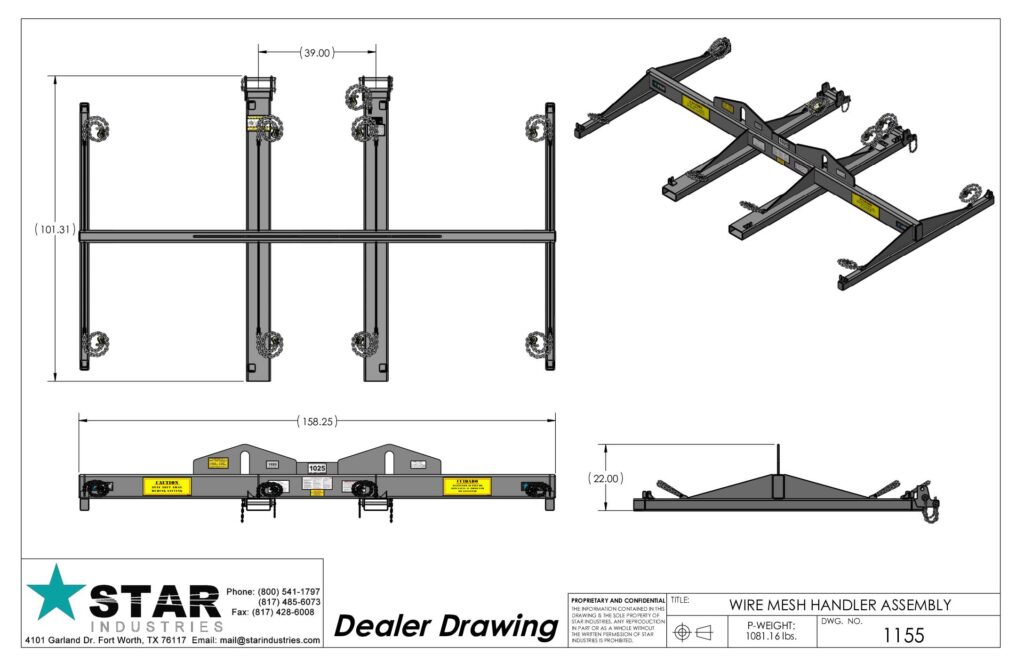

| 1155 | Fork Pockets 39″ OC. Requires 48″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles. |
13’ | 7,000 lbs | 1025 lbs |

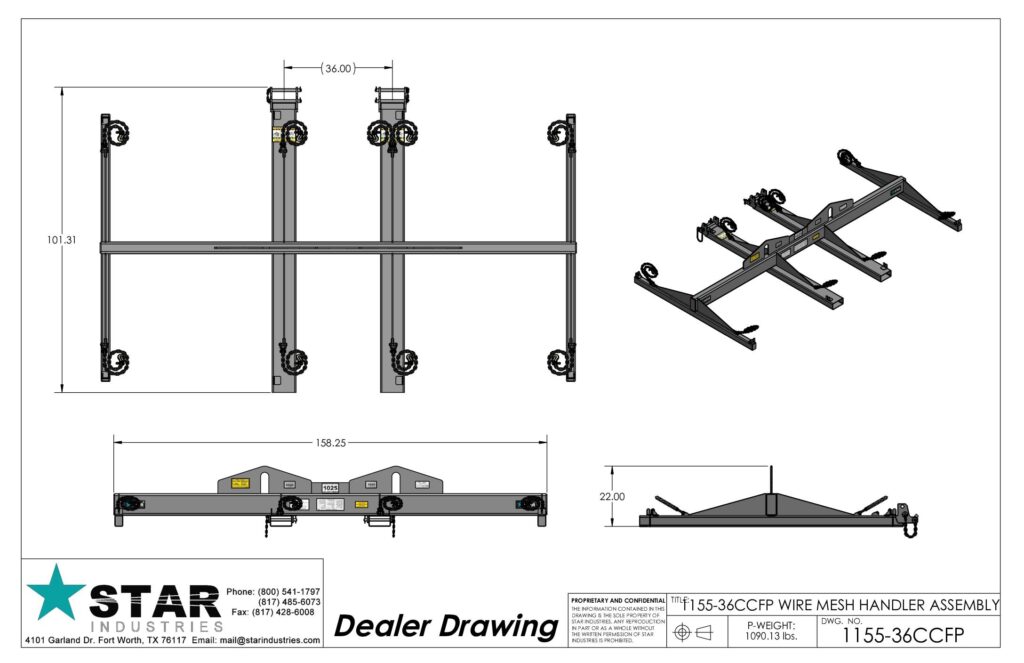

| 1155-36CCFP | Fork Pockets 36″ OC. Requires 44″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles. |
13’ | 6,500 lbs | 1025 lbs |

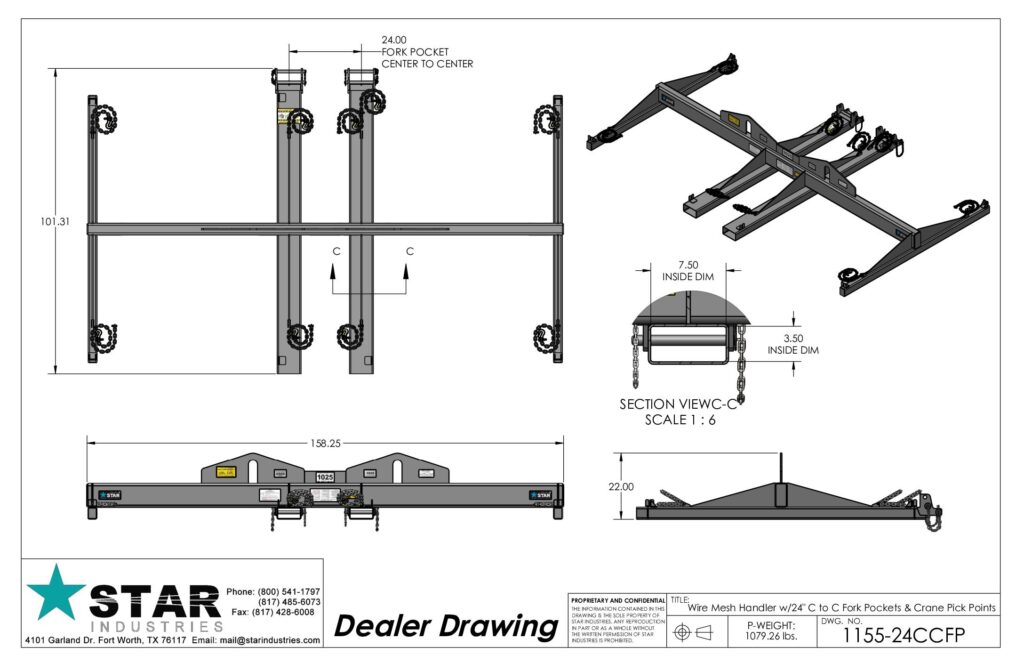

| 1155-24CCFP | Fork Pockets 24″ OC. Requires 32″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles. |
13’ | 6,500 lbs | 1025 lbs |
Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook. Operating manual/safety information available online and by calling 1-800-541-1797.

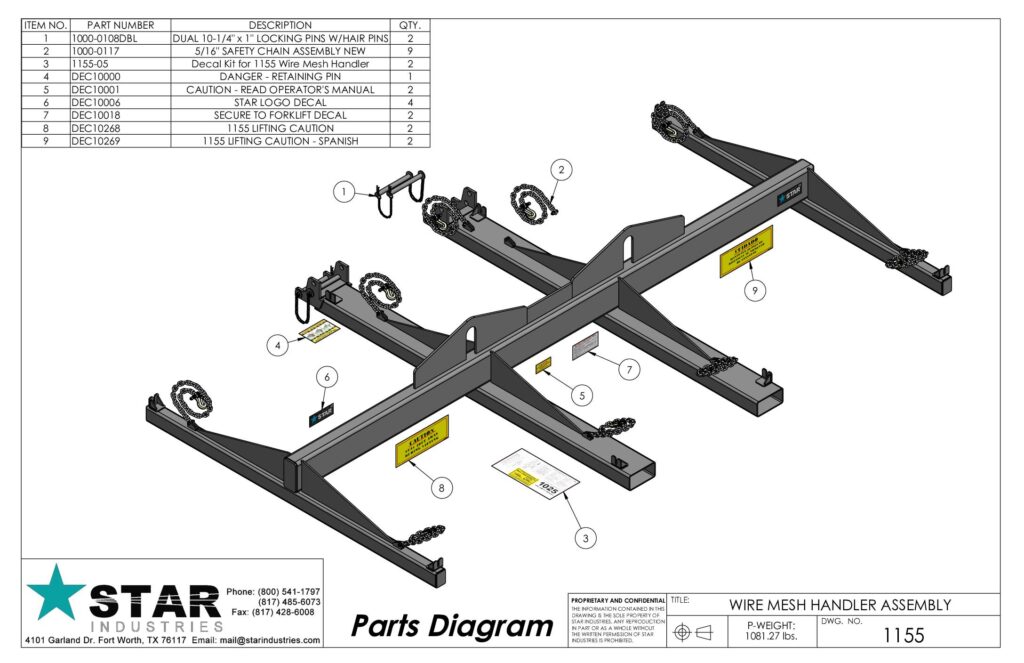

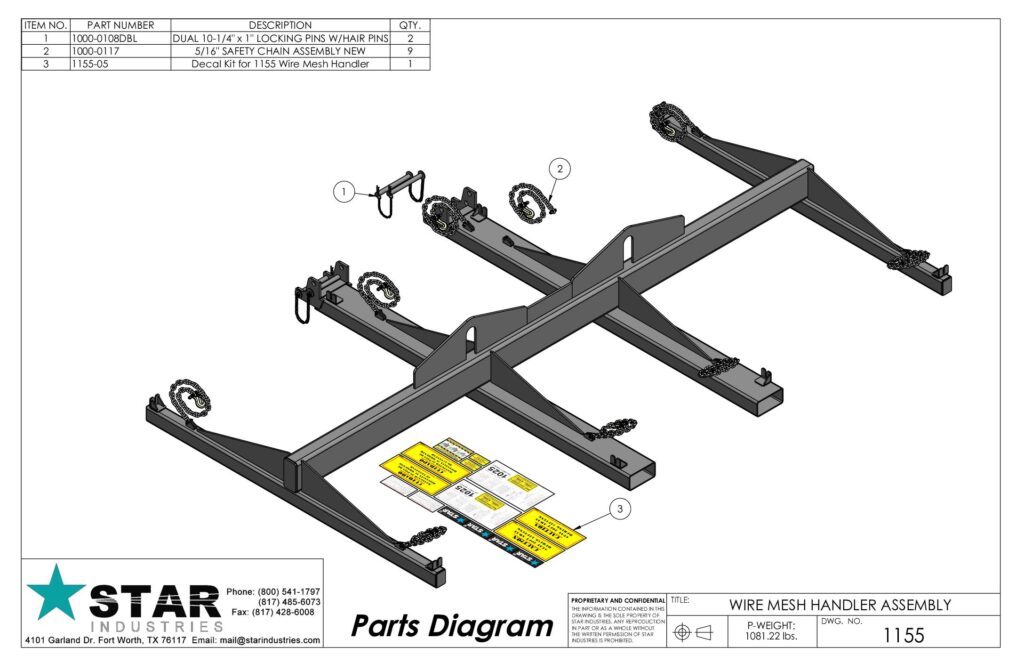

Parts (8)
Select parts using the checkboxes to add them to your inquiry list.
Don't know the part #? Go to the page for your attachment (e.g., Jib Boom) and click on the downloads tab to locate the Parts Diagram PDF.
Quote Request
Back to selected items You have selected 0 items for inquiry.
Selected items
Contact information
Wire Mesh Handler FAQs
What is a wire mesh handler used for?
A wire mesh handler is designed to lift and transport large or heavy sections of concrete reinforcing mesh more efficiently.
Contractors commonly use wire mesh handlers during concrete work where reinforcing mesh needs to be positioned before the concrete is poured.
What types of contractors use wire mesh handlers?
Wire mesh handlers are particularly useful for contractors performing:
- Foundation preparation and foundation pours
- Driveway construction
- Base pours
- Concrete flatwork
- Highway and road construction
These projects often use substantial quantities of reinforcing mesh, wire fabric and other reinforcement materials.
Can a wire mesh handler be used for highway construction?
Yes. Highway and roadway construction can require especially heavy reinforcing material, including heavy-gauge mesh and rebar. A wire mesh handler can help crews lift and position large sections of reinforcing mesh during this type of work.
How much can a Star Industries wire mesh handler lift?
Star Industries currently lists wire mesh handlers with capacities of up to 7,000 lbs. Always use the rated capacity of the specific model being used and follow applicable lifting and rigging requirements.
