Adjustable Spreader Bar
Crane Spreader Bar
- Choice of 4 crane spreader bar options and 7 forklift spreader bar options
- Use with rough terrain forklifts, either straight mast or extendable reach that accept forks 7” wide x 2 ½” thick.
- Two separate hook points that allows the spreader bar to be suspended from a crane.
Handle extra-long material easier and more safely
A Star Industries spreader bar for cranes is the perfect solution for handling long and awkward material that tends to bend. It’s great for handling rebar cages as well as beams, trusses, metal roofing and siding.
Crane Spreader Bar Models
| Model | Type | Size | Capacity | Weight |
|---|---|---|---|---|

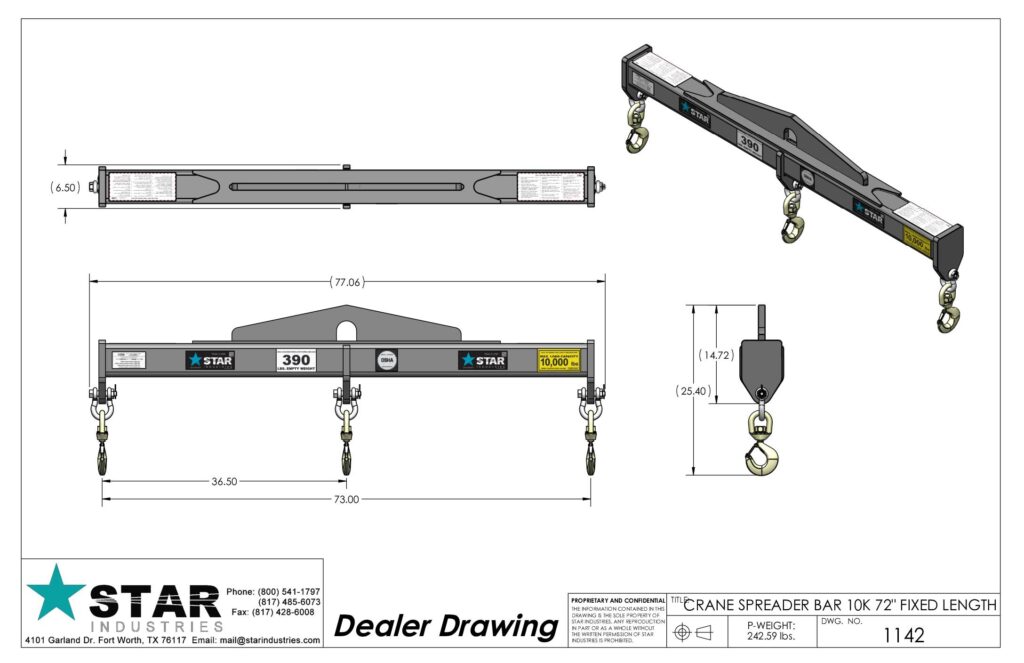

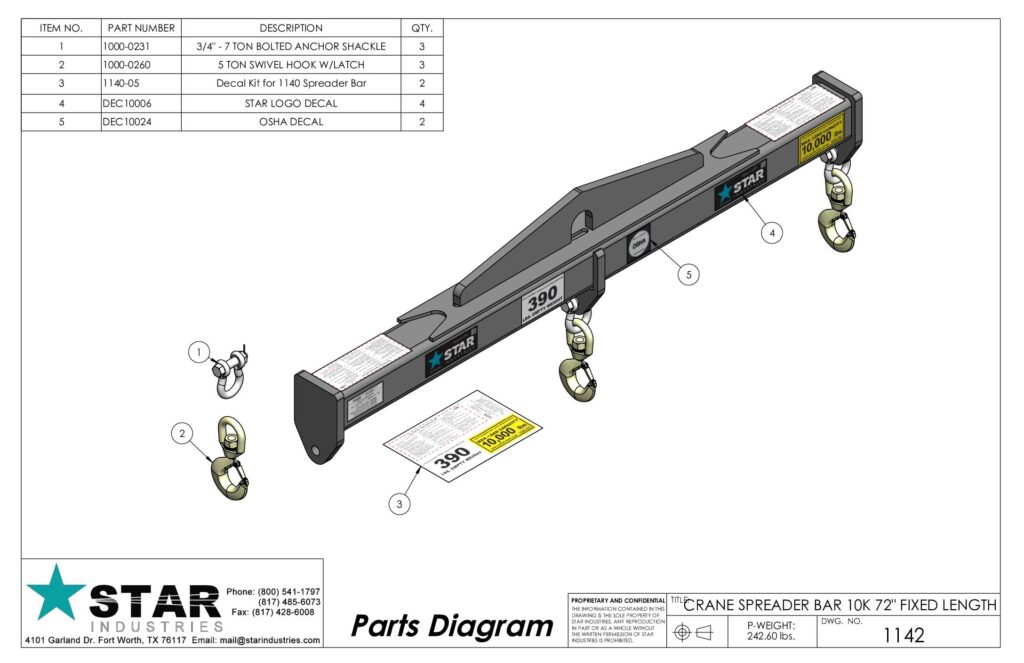

| 1142 | Fixed length | 6ft | 10,000 lbs | 220 lbs |
| 1177A | Fixed length | 12ft | 20,000 lbs | 725 lbs |

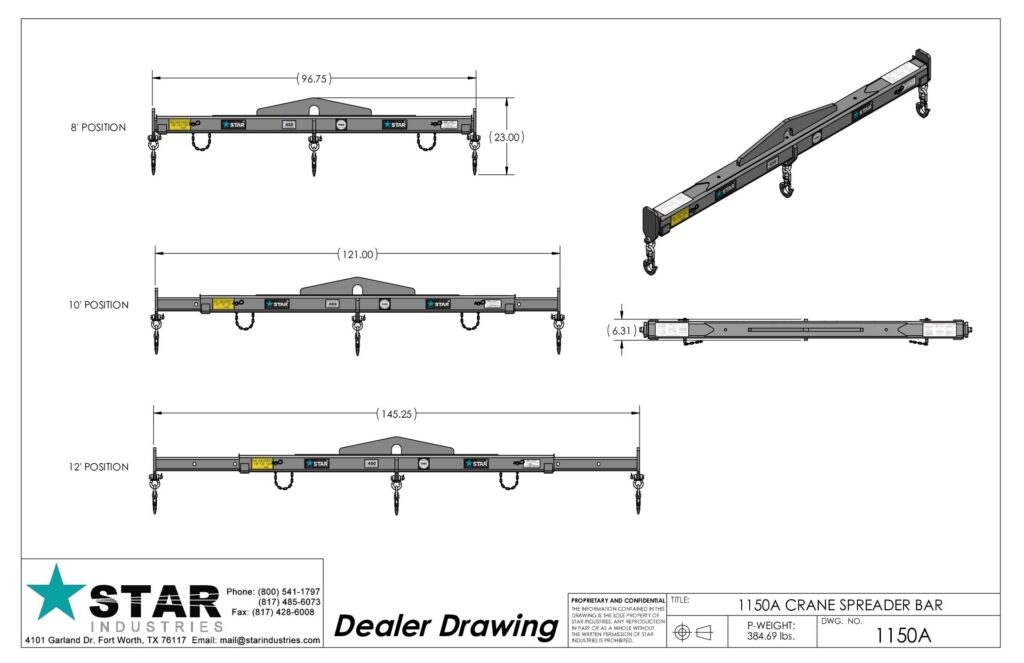

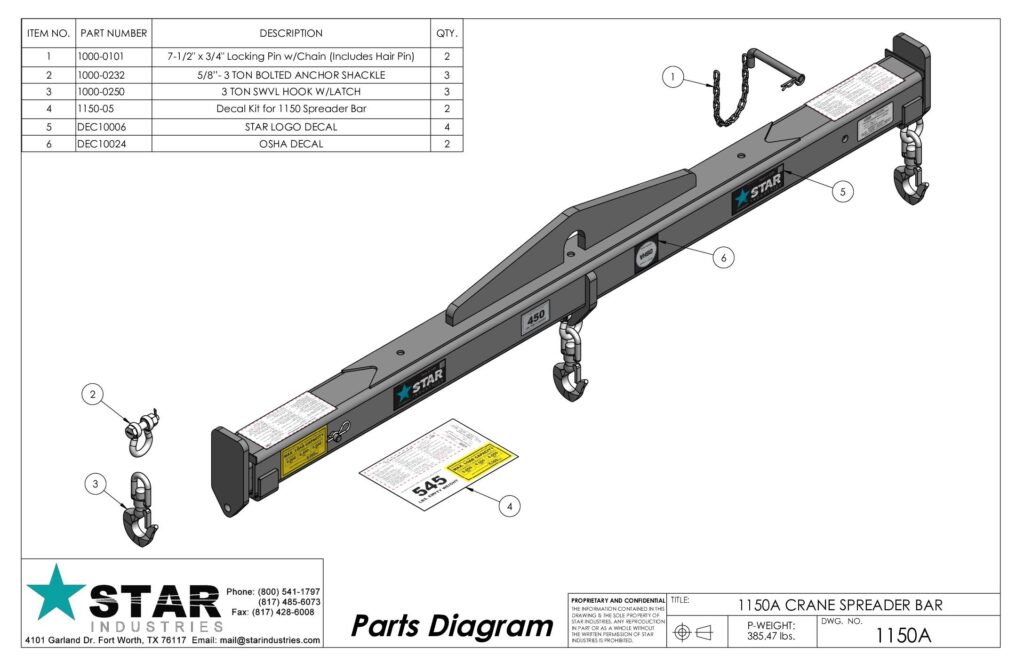

| 1150A | Adjustable | 8ft to 12ft | 8,000 / 6,400 / 5,000 lbs | 534 lbs |

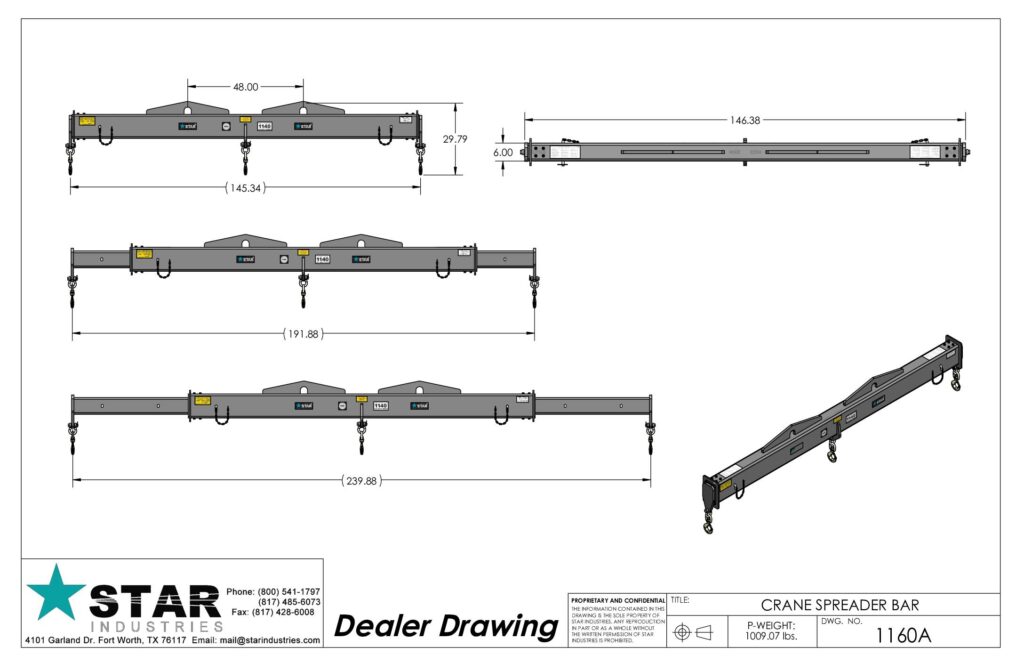

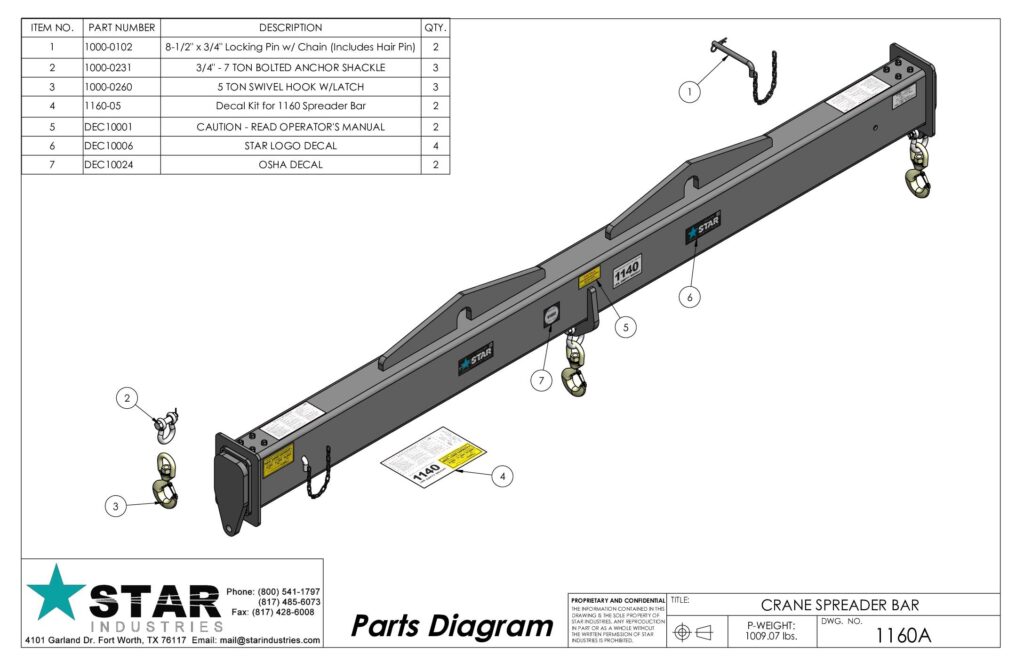

| 1160A | Adjustable | 12ft to 20ft | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |
All Crane Spreader Bars have a Center Hook
Forklift Spreader Bar Models
| Model | Type | Size | Fork Pocket | Capacity | Weight |
|---|---|---|---|---|---|

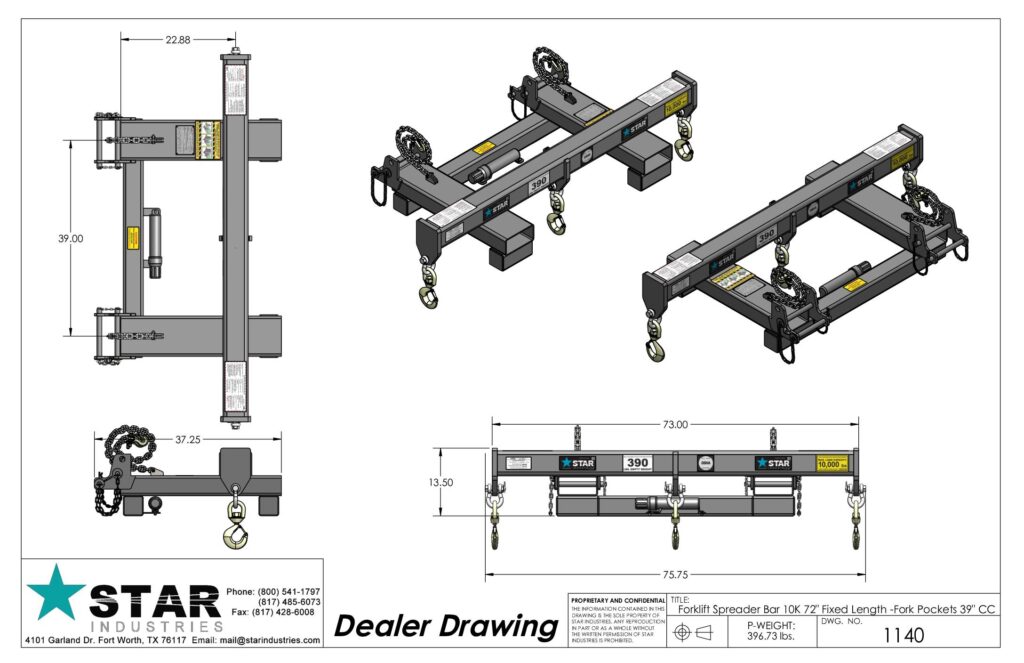

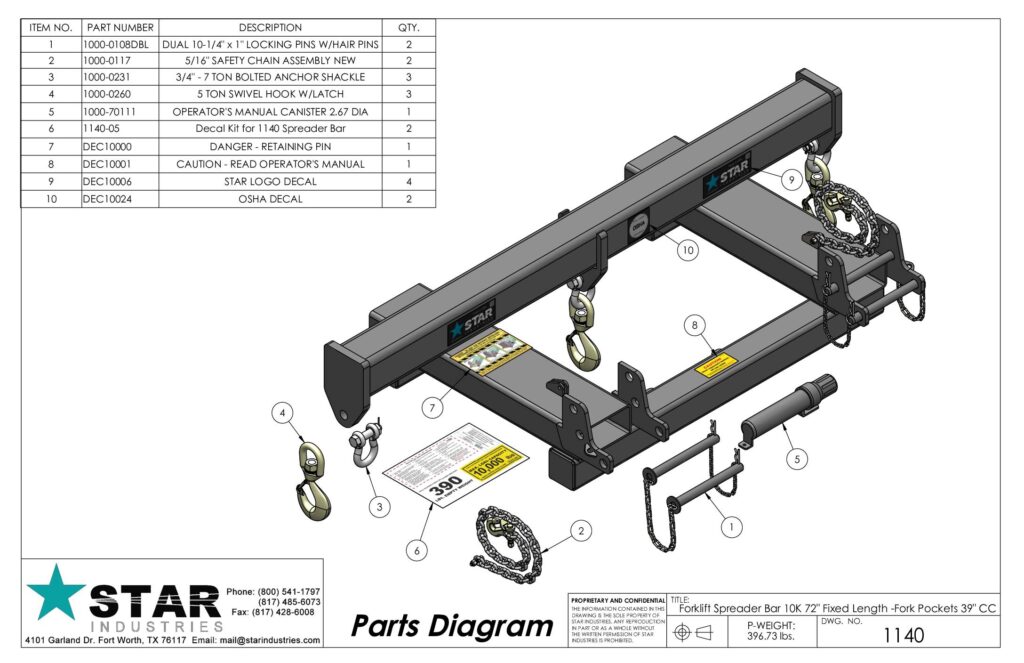

| 1140 | Fixed length | 6ft | 39” OC. Requires 48” or wider carriage |
10,000 lbs | 390 lbs |
| 1140-24CC | Fixed length | 6ft | 24” OC. Requires 32” or wider carriage |
10,000 lbs | 390 lbs |
| 1149 | Fixed length | 7ft | 39” OC. Requires 48” or wider carriage |
34,000 lbs | 830 lbs |
| 1177B | Fixed length | 12ft | 39” OC. Requires 48” or wider carriage |
20,000 lbs | 825 lbs |
| 1150C | Adjustable | 8ft to 10ft to 12ft |
39” OC. Requires 48” or wider carriage |
8,000 / 6,400 / 5,000 lbs |
545 lbs |
| 1150C-FP300C | Adjustable | 8ft to 10ft to 12ft |
30” OC. Requires 38” or wider carriage |
8,000 / 6,400 / 5,000 lbs |
545 lbs |
| 1160B | Adjustable | 12ft to 16ft to 20ft |
Requires 48” or wider carriage | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |
| 1160BA | Adjustable includes crane pick points | 12ft to 16ft to 20ft |
Requires 48” or wider carriage | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |
Operating manual/safety information available online and at 1-800-541-1797
The Crane Spreader Bar Makes Handling Long Lengths of Material Easy
Long materials like beams, rebar, and roofing sheets can be awkward to move, and downright dangerous to handle if not done correctly. A crane spreader bar is the ANSI/OSHA compliant and cost-effective way to solve this problem and support long loads during lifts with your crane.
What Is a Crane Spreader Bar?
A crane spreader bar, or a lifting beam or spreader beam, is a specialized piece of lifting equipment used in material handling and rigging operations. It is typically a horizontal steel beam or structure suspended from a crane hook. The primary purpose of a crane spreader bar is to distribute the load evenly and to provide a stable lifting point for wide or elongated loads, ensuring that the load remains balanced and secure during lifting and movement. The components of this attachment are:
- Main Beam: The central horizontal bar that provides structural integrity.
- End Fittings: Attachment points at each end of the beam where the crane’s lifting slings or hooks are connected.
- Load Hooks or Attachment Points: Points along the beam where the load is secured, often using additional slings or chains.
- Pad Eyes or D-Rings: Additional attachment points for securing the load or for auxiliary lifting purposes.
Uses for a Spreader Bar Crane
The main function of the spreader bar is to distribute the weight of the load across multiple lifting points, reducing the risk of damage to the load and the lifting equipment. This is particularly important for long, wide, or delicate loads. The spreader bar is a popular attachment with building erectors and is perfect for handling rebar, rebar cages, and long metal building beams such as steel and wood trusses.
Key Features of a Spreader Bar for Crane Equipment
Load Distribution: The spreader bar distributes the weight of the load across several lifting points, reducing the risk of damage to the load and the lifting equipment. This is particularly important for long, wide, or delicate loads.
Stability: By spreading the lifting force over a wider area, the crane spreader bar helps to prevent the load from tilting or rotating during lifting, which is crucial for maintaining stability and safety.
Versatility: Spreader bars can be equipped with various attachments such as slings, chains, or shackles, making them adaptable to different types of loads and lifting requirements.
Safety: They reduce the risk of slings or lifting straps cutting into the load or causing damage, and they help to prevent the load from swinging or shifting, which can be dangerous in a lifting environment.
Compliance: Spreader bars can help ensure compliance with safety regulations and standards. They are designed to handle specific load capacities and are often inspected and certified for use.
Want to learn more about our crane attachments? Contact the Start team today.
