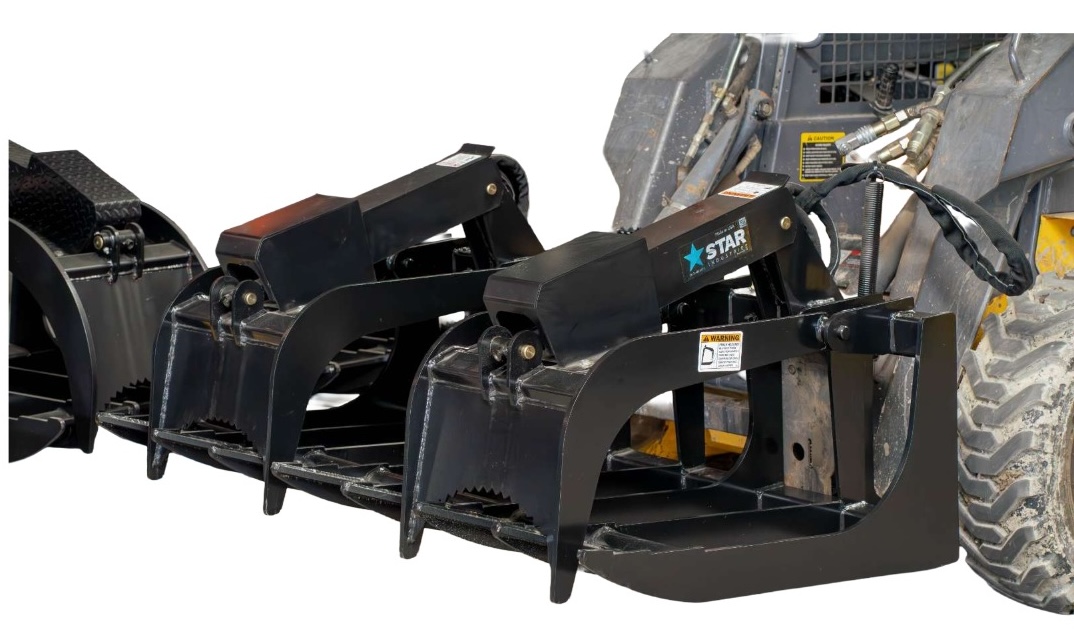

Grapple Bucket

Root Grapple Rugged heavy-duty construction

Move bulky, hard-to-handle materials

Root Grapple - the perfect attachment for debris clean up

Built-in covers protect root grapple fittings and hyd cylinder

Built-in covers protect fittings and hyd cylinder

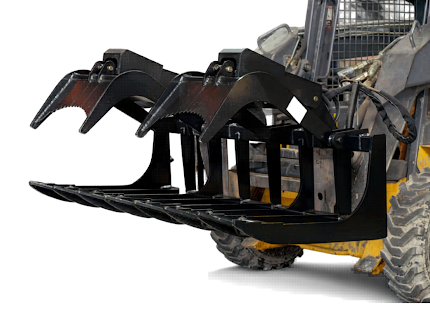

Root Grapple Bucket in air

Root Grapple Bucket ready for use

Root Grapple Buckets

Star Industries Root Grapple Buckets
Root grapple tines curve upward to prevent catching utility lines or cables in storm clean-up
Hydraulic cylinders operate independently to adjust for uneven loads

Download Sheet

Description
Specifications
Downloads

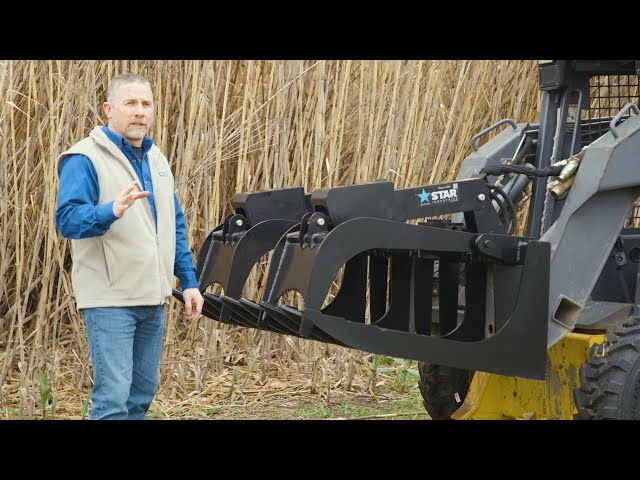

Videos
Parts

Move bulky, hard-to-handle materials like brush and logs easily with a Star Industries Root Grapple

The bottom separated tines let dirt sift out when loading large rocks and trash making it the perfect attachment for debris clean up.

Rugged heavy-duty construction for dependability and long life
Built-in covers protect fittings and hyd cylinder
Optional intermediate bottom tines reduce space between tines to approximately 4"
Grease zerks protected with tubes

Root Grapple	Heavy Duty 66”	Heavy Duty 72”	Demolition Grade 72”	Demolition Grade 78”	Demolition Grade 84”

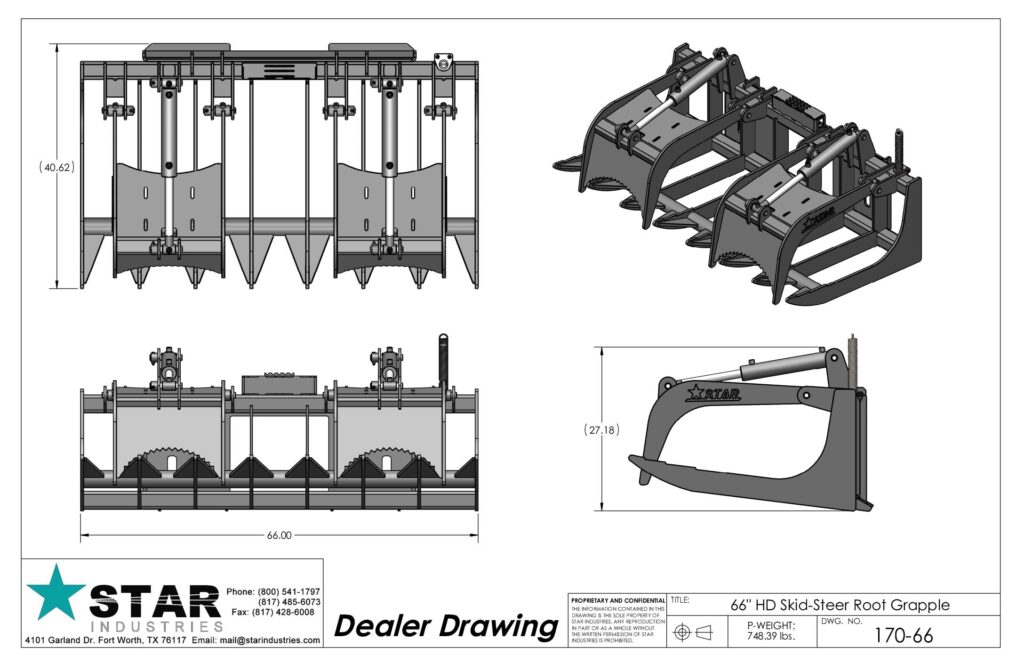

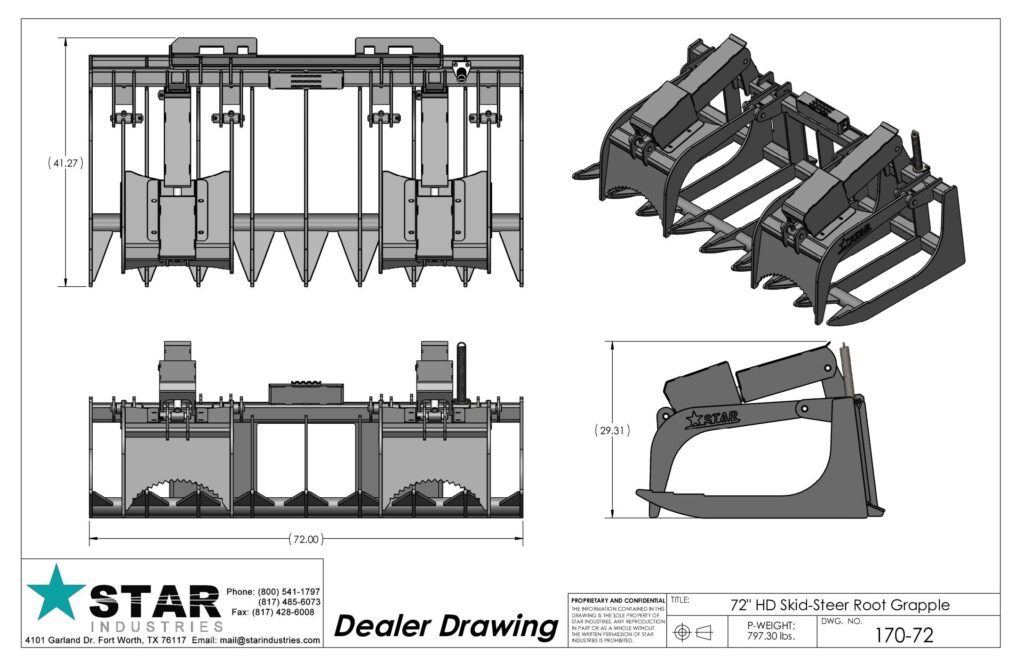

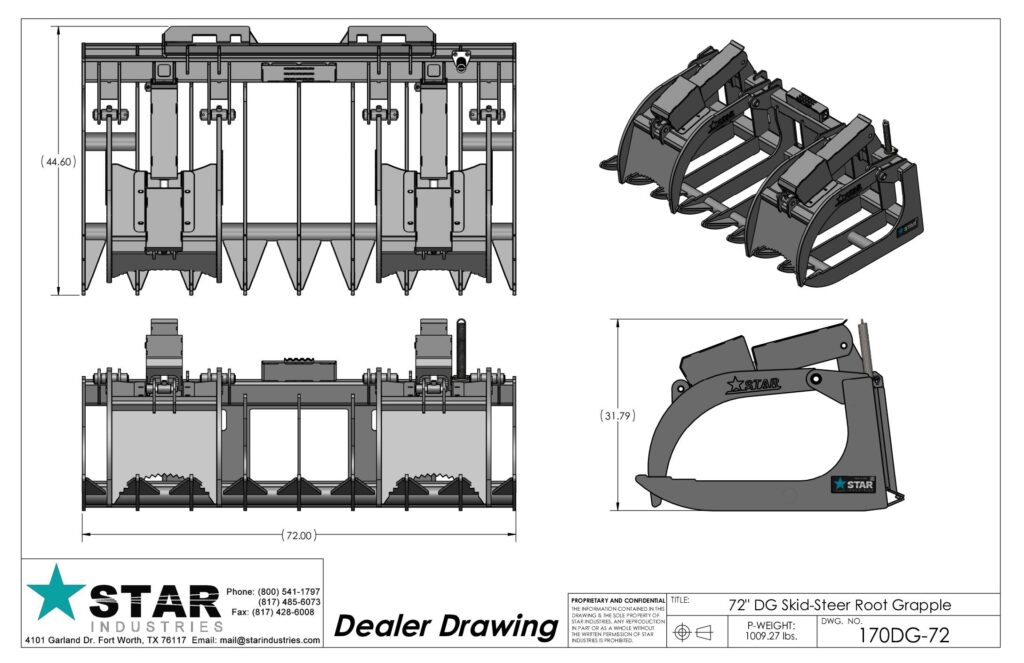

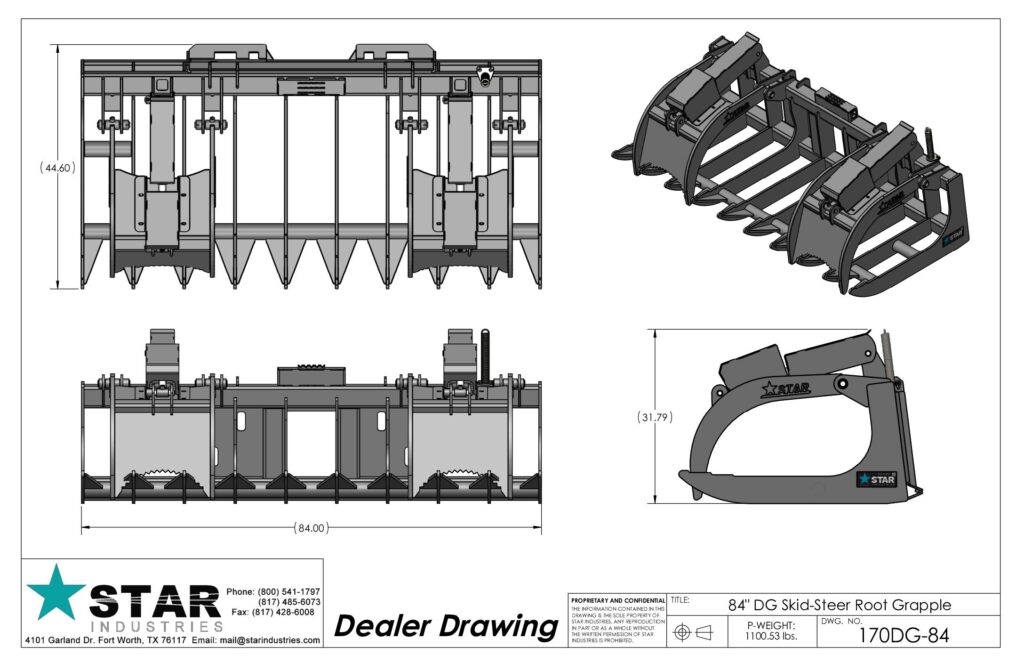

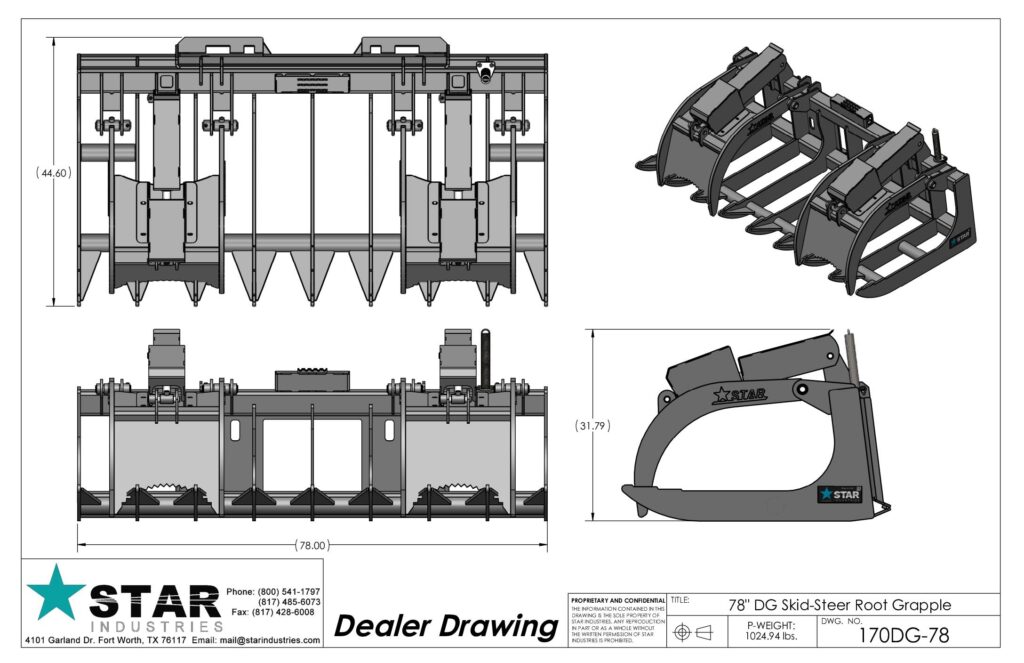

Model	170-66	170-72	170DG-72	170DG-78	170DG-84
Width I.D.	66”	72”	72”	78”	84”
Grapple Capacity	15.8 cuft	17.2 cuft	19.7 cuft	21.84 cuft	20 cuft
Depth	38”	35 ½”	42 ¾”	42 ¾”	42 ¾”
Back Height	21”	21”	21”	21”	21”
Sides	½” Plate	½” Plate	½” Plate	½” Plate	½” Plate
Grapple Thickness	½”	½”	9/16”	9/16”	9/16”
Tine Thickness	½”	½”	½”	½”	½”
Tine Height	3 ½”	3 ½”	5”	5”	5”
Distance between tines	Approx. 8 ½”	Approx. 8 ½”	Approx. 8 ½”	Approx. 8 ½”	Approx. 8 ½”
HD Welded Hyd Cylinders	2” x 10” x 1 ½”	2” x 10” x 1 ½”	2” x 10” x 1 ½”	2” x 10” x 1 ½”	2” x 10” x 1 ½”
Hyd Hoses & Flat Faced Couplers	Included	Included	Included	Included	Included
Empty Weight	725 lbs	750 lbs	950 lbs	943 lbs	967 lbs

Note: Demolition Grade is especially recommended for “Track” style Skid-Steers and those with 70Hp or 3,500 lbs. capacity or greater.

Operating manual/safety information available online and at 1-800-541-1797

Parts (9)

Select parts using the checkboxes to add them to your inquiry list.
Don't know the part #? Go to the page for your attachment (e.g., Jib Boom) and click on the downloads tab to locate the Parts Diagram PDF.

Part Number

Description

Diagram

170-0010S

Hyd. Cylinder for Star Grapple Buckets w/ 1.00" Pin Fits: ROOT & GRAPPLE BUCKETS
